Module-Headlamp Leveling (Standard) Connector End View (D2720A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 33472-1601

Part Description: MX150 RECEPTACLE CONNECTOR ASSY -2 ROW

Connector No: D2720A

Option: Standard

Repair Kit Part Number: 68202814AA

Cavity Count: 16

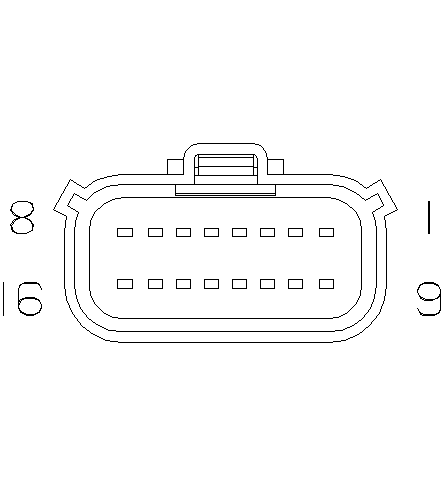

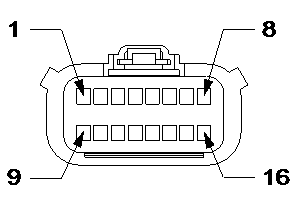

Fig 1: Module-Headlamp Leveling Connector End View (Standard)

Courtesy of CHRYSLER

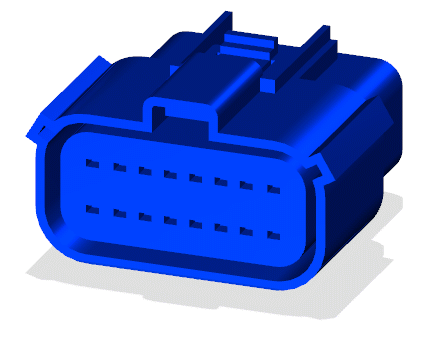

Fig 2: Module-Headlamp Leveling Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Headlamp Leveling Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Headlamp Leveling Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	L131	WH/GN	0.35	LEFT HEADLAMP LEVEL SENSOR SIGNAL	N/A
3	D257	YE/VT	0.35	CAN C (+)	N/A
4	L132	GN/WH	0.35	RIGHT HEADLAMP LEVEL SENSOR SIGNAL	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
7	L966	WH/BK	0.35	HEADLAMP LEVELING SENSOR FRONT RETURN	N/A
8	L960	WH/DG	0.35	HEADLAMP LEVELING SENSOR FRONT SIGNAL	N/A
9	Z910	BK/GY	0.35	GROUND	N/A
10	N0	NA	0	NO CONNECT	N/A
11	F927	PK/YE	0.35	FUSED IGNITION	N/A
12	D256	YE	0.35	CAN C (-)	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	F861	WH/PK	0.35	HEADLAMP LEVELING SNSR 5V SUPPLY	N/A
16	L963	WH/DB	0.35	HEADLAMP LEVELING SENSOR REAR SIGNAL	N/A
