Module-HVAC C1 (Standard) Connector End View (D3828A)

Harness-Family: HVAC

Color: GRAY

Gender: FEMALE

Part Number: 13530008

Part Description: Not Available

Connector No: D3828A

Option: Standard

Repair Kit Part Number: 68499396AA

Cavity Count: 36

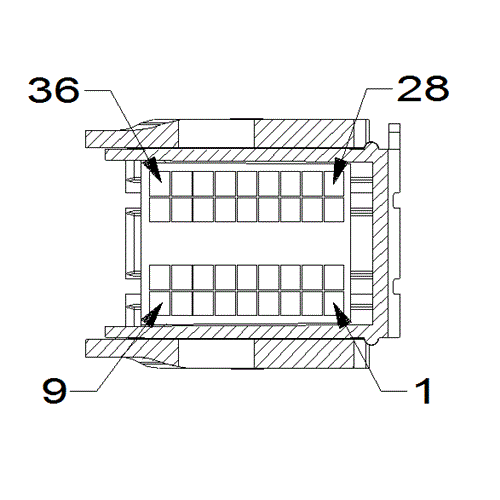

Fig 1: Module-Hvac C1 Connector End View (Standard)

Courtesy of CHRYSLER

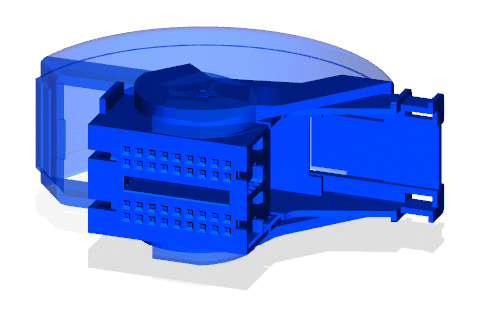

Fig 2: Module-Hvac C1 Isometric View (Standard)

Courtesy of CHRYSLER

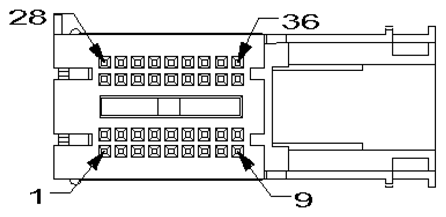

Fig 3: Module-Hvac C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

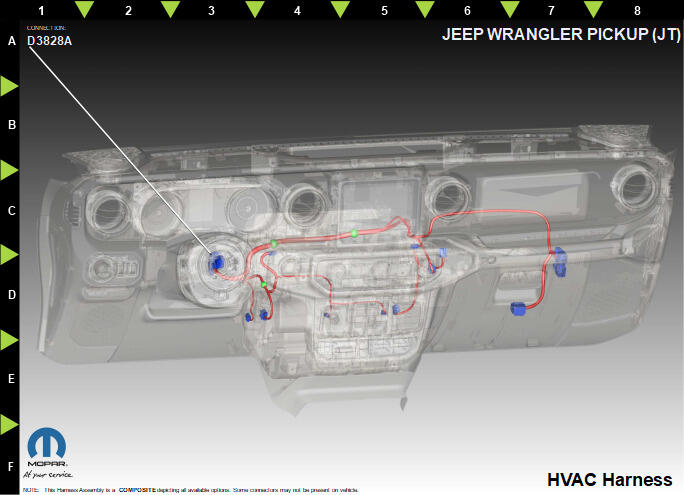

Fig 4: Module-Hvac C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F915	PK/GN	0.35	FUSED IGNITION RUN/START	N/A
2	A231	RD	0.35	FUSED B(+)	N/A
4	D101	DG	0.35	CAN IHS (+)	N/A
5	D102	WH	0.35	CAN IHS (-)	N/A
6	Z912	BK	0.35	GROUND	N/A
8	C139	DB/WH	0.35	LEFT BLEND DOOR DRIVER 2	N/A
9	C137	DB/GN	0.35	LEFT BLEND DOOR DRIVER 1	N/A
10	C27	BU/WH	0.35	A/C COMPRESSOR CONTROL	N/A
14	C115	DB	0.35	DEFOGGER RELAY CONTROL	N/A
15	C56	DB/BU	0.50	FRONT BLOWER PWM CONTROL	N/A
16	C229	DB	0.50	BLOWER MOTOR RETURN	N/A
17	C142	DB/OG	0.35	DEFROST MODE DRIVE	N/A
18	C143	DB/BN	0.35	PANEL MODE DRIVE	N/A
19	C134	OG/GY	0.35	RIGHT PANEL TEMPERATURE SENSOR SIGNAL	N/A
20	C162	BG/GY	0.35	LEFT PANEL TEMPERATURE SENSOR SIGNAL	N/A
21	C21	DB/GN	0.35	EVAPORATOR TEMPERATURE SENSOR SIGNAL	N/A
22	C235	BU/BG	0.35	MODE DOOR SIGNAL	N/A
23	F710	BU/PK	0.35	5V REFERENCE SIGNAL	N/A
24	C233	BG/DB	0.35	LEFT BLEND DOOR SIGNAL	N/A
25	C34	DB/BU	0.35	SIGNAL RETURN	N/A
26	C140	DB/YE	0.35	OUTSIDE AIR INLET DRIVE	N/A
27	C141	DB/DG	0.35	RECIRCULATION AIR INLET DRIVE	N/A
28	C130	OG/BU	0.35	RIGHT FLOOR TEMPERATURE SENSOR SIGNAL	N/A
29	C164	BG/DB	0.35	LEFT FLOOR TEMPERATURE SENSOR SIGNAL	N/A
30	C919	BU/BK	0.35	TEMP SNSR COMMON RTN	N/A
31	C224	OG/BG	0.35	RIGHT BLEND DOOR SIGNAL	N/A
33	C144	DB/BU	0.35	RECIRC DOOR SIG	N/A
35	C138	DB/BG	0.35	RIGHT BLEND DOOR DRIVER 2	N/A
36	C136	DB/GY	0.35	RIGHT BLEND DOOR DRIVER 1	N/A
