Module-Glow Plug (Standard) Connector End View (D3913A)

Harness-Family: Engine_Diesel1

Color: DARK GREEN

Gender: FEMALE

Part Number: F654310

Part Description: Not Available

Connector No: D3913A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 11

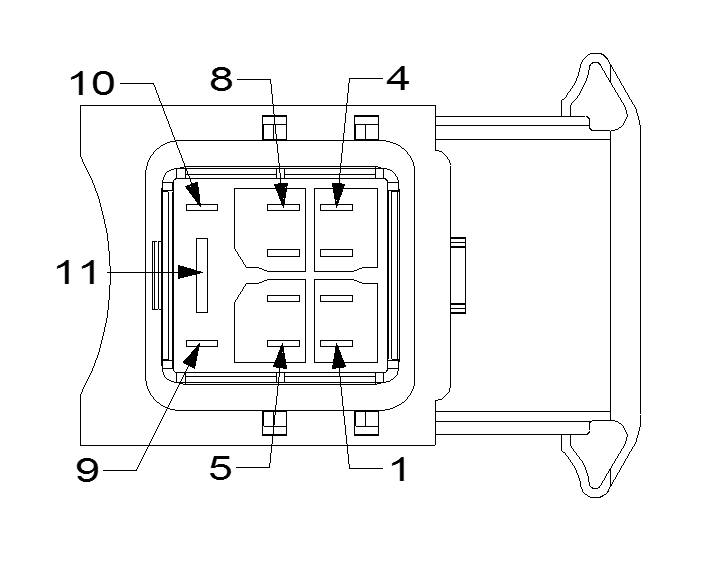

Fig 1: Module-Glow Plug Connector End View (Standard)

Courtesy of CHRYSLER

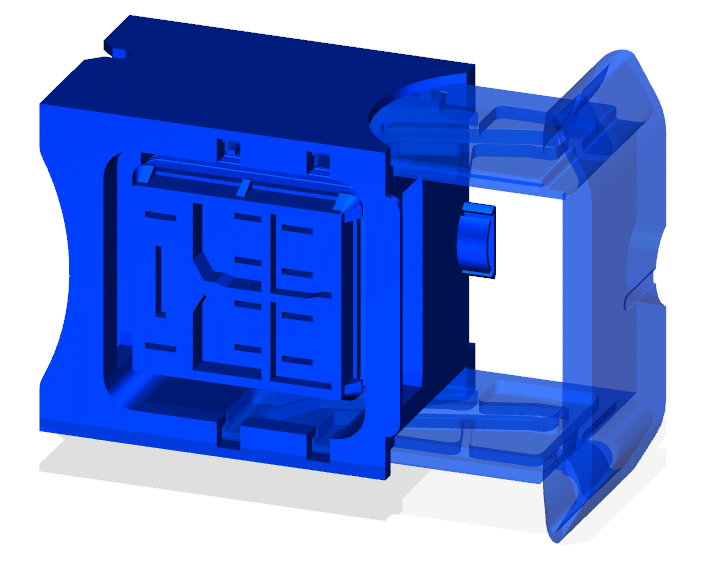

Fig 2: Module-Glow Plug Isometric View (Standard)

Courtesy of CHRYSLER

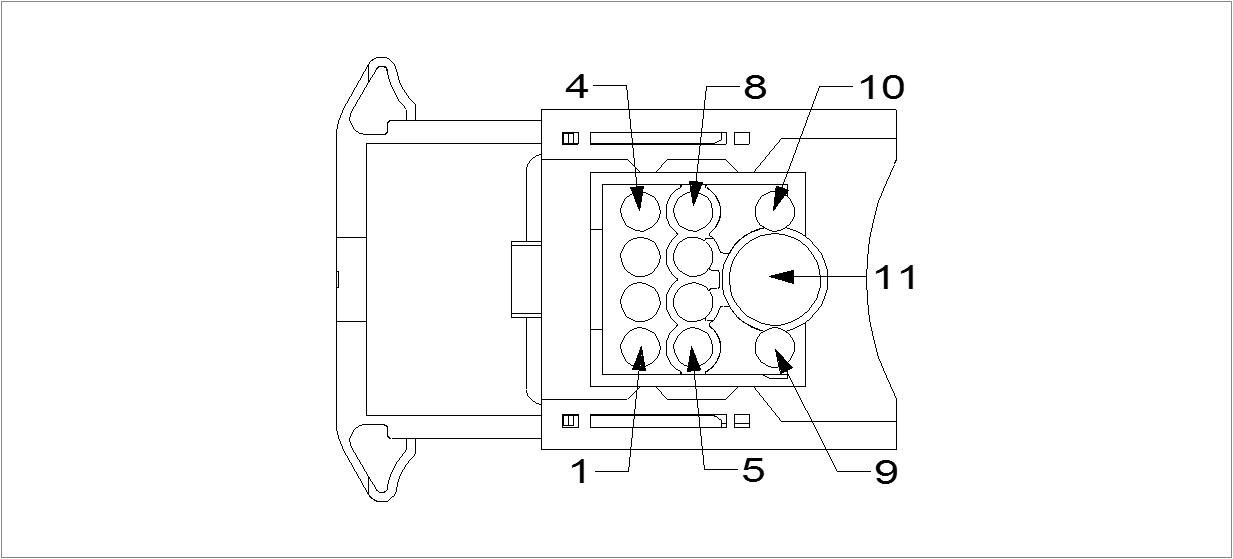

Fig 3: Module-Glow Plug Wire Insertion View (Standard)

Courtesy of CHRYSLER

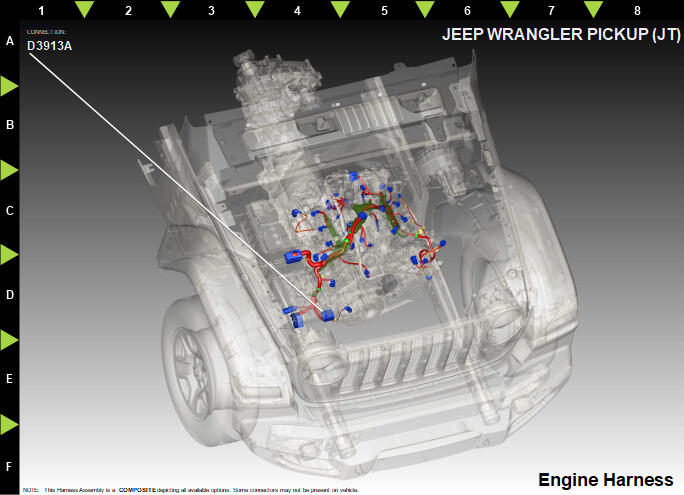

Fig 4: Module-Glow Plug Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A202	BK/RD	2.50	FUSED B(+)	N/A
2	A203	YE	2.50	FUSED B(+)	N/A
3	A204	GN	2.50	FUSED B(+)	N/A
4	A208	BN	2.50	FUSED B(+)	N/A
5	A211	WH/BN	2.50	FUSED B(+)	N/A
6	F343	GY/RD	0.75	FUSED ASD RELAY OUTPUT	N/A
7	Z909	BK	0.75	GROUND	N/A
8	A216	DB	2.50	FUSED B(+)	N/A
10	D509	OG	0.50	LIN BUS	N/A
11	A29	GY	6.0	FUSED B(+)	N/A
