Module-Fuel Pump Control (Standard) Connector End View (D2792A)

Harness-Family: Chassis_RT

Color: GRAY

Gender: FEMALE

Part Number: 13669205_15430896

Part Description: Not Available

Connector No: D2792A

Option: Standard

Repair Kit Part Number: 68499976AA

Cavity Count: 8

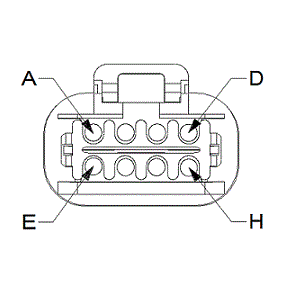

Fig 1: Module-Fuel Pump Control Connector End View (Standard)

Courtesy of CHRYSLER

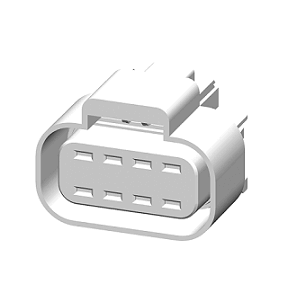

Fig 2: Module-Fuel Pump Control Isometric View (Standard)

Courtesy of CHRYSLER

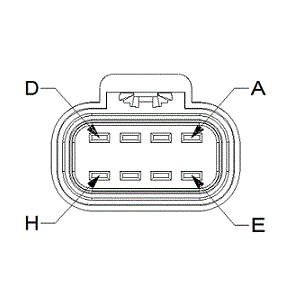

Fig 3: Module-Fuel Pump Control Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Fuel Pump Control Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
A	N1	DB/OG	2.0	FUEL PUMP CONTROL OUTPUT	N/A
B	N11	DB/BG	0.35	FPCM PWM CONTROL	N/A
C	N0	NA	0	NO CONNECT	N/A
D	N13	DB/OG	2.0	FUEL PUMP PWM CONTROL	N/A
E	Z906	BK	2.0	GROUND	N/A
F	N12	DB/GN	0.35	FPCM PWM FEEDBACK	N/A
G	Z31	BK	0.50	SHIELD GROUND	N/A
H	N14	VT/BU	2.0	FUEL PUMP RETURN	N/A
