Module-Fuel Pump (Standard) Connector End View (D6602A)

Harness-Family: Chassis_RT

Color: BLACK

Gender: FEMALE

Part Number: 13521463

Part Description: Not Available

Connector No: D6602A

Option: Standard

Repair Kit Part Number: 68528118AA

Cavity Count: 5

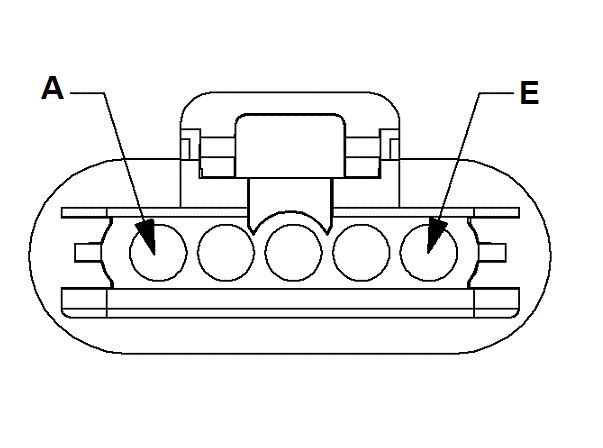

Fig 1: Module-Fuel Pump Connector End View (Standard)

Courtesy of CHRYSLER

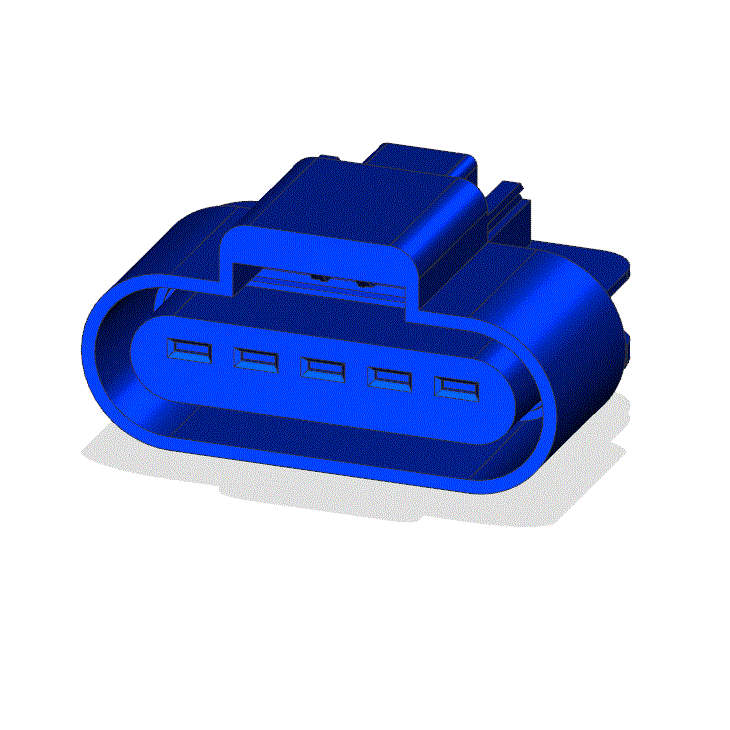

Fig 2: Module-Fuel Pump Isometric View (Standard)

Courtesy of CHRYSLER

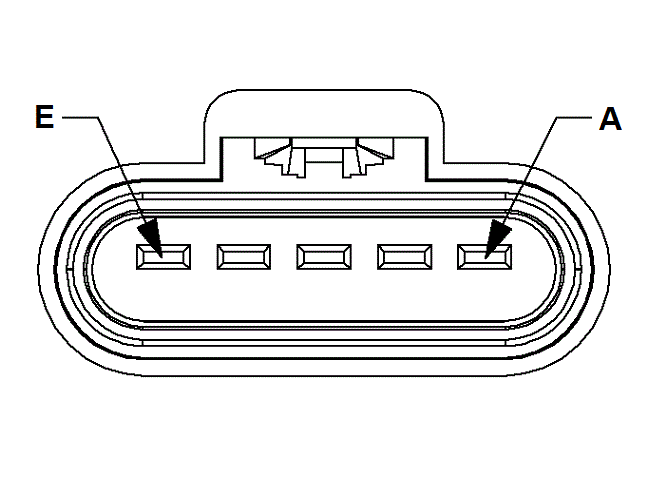

Fig 3: Module-Fuel Pump Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Fuel Pump Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
A	N14	VT/BU	2.0	FUEL PUMP RETURN	N/A
B	N4	DB/WH	1.0	FUEL LEVEL SENSOR SIGNAL	N/A
C	G109	BK	1.0	FUEL LEVEL SENSE RETURN	N/A
D	N13	DB/OG	2.0	FUEL PUMP PWM CONTROL	N/A
E	N0	NA	0	NO CONNECT	N/A
