Module-Emergency Assistance C5 (Standard) Connector End View (D3115E)

Harness-Family: Antenna_IP

Color: VIOLET

Gender: FEMALE

Part Number: 1438920-8

Part Description: Not Available

Connector No: D3115E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

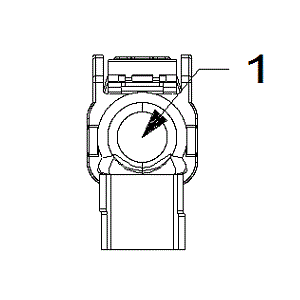

Fig 1: Module-Emergency Assistance C5 Connector End View (Standard)

Courtesy of CHRYSLER

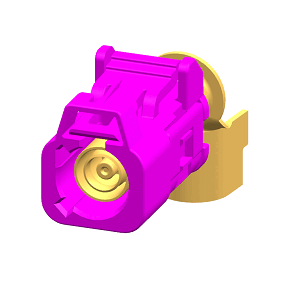

Fig 2: Module-Emergency Assistance C5 Isometric View (Standard)

Courtesy of CHRYSLER

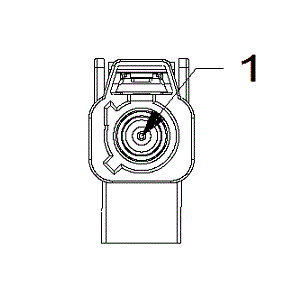

Fig 3: Module-Emergency Assistance C5 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Emergency Assistance C5 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J240	BK/BK	0.70	CABLE 4G CELL	N/A
