Module-Emergency Assistance C4 (Standard) Connector End View (D3115D)

Harness-Family: Antenna_IP

Color: NUT BROWN

Gender: FEMALE

Part Number: 2035141-6

Part Description: Not Available

Connector No: D3115D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

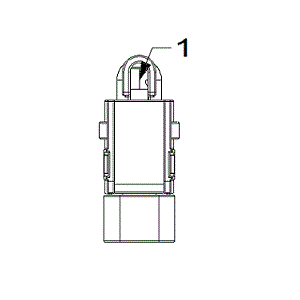

Fig 1: Module-Emergency Assistance C4 Connector End View (Standard)

Courtesy of CHRYSLER

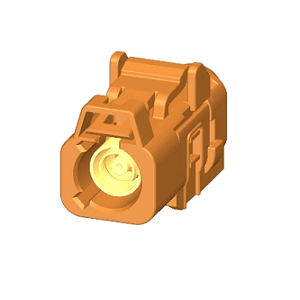

Fig 2: Module-Emergency Assistance C4 Isometric View (Standard)

Courtesy of CHRYSLER

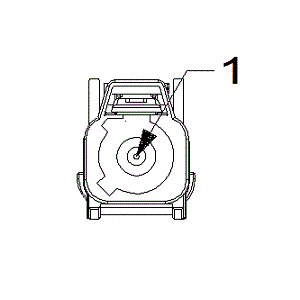

Fig 3: Module-Emergency Assistance C4 Wire Insertion View (Standard)

Courtesy of CHRYSLER

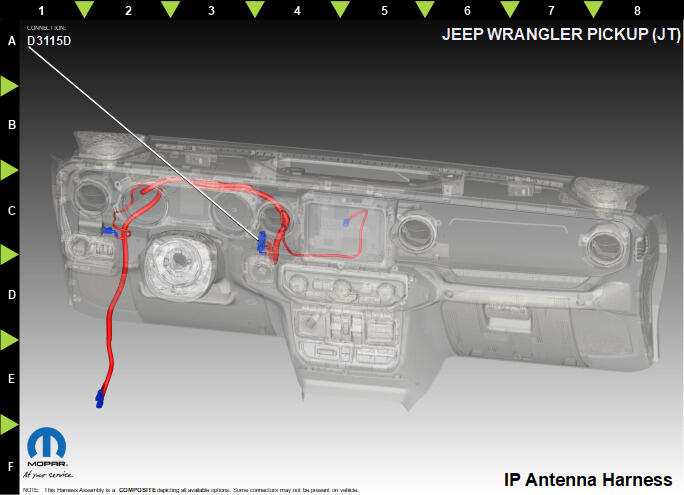

Fig 4: Module-Emergency Assistance C4 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D8	BK/BK	0.20	GPS ANTENNA SIGNAL	N/A
