Module-Emergency Assistance C2 (Standard) Connector End View (D3115B)

Harness-Family: Antenna_IP

Color: BLUE

Gender: FEMALE

Part Number: 2035141-3

Part Description: Not Available

Connector No: D3115B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

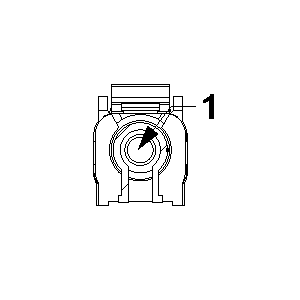

Fig 1: Module-Emergency Assistance C2 Connector End View (Standard)

Courtesy of CHRYSLER

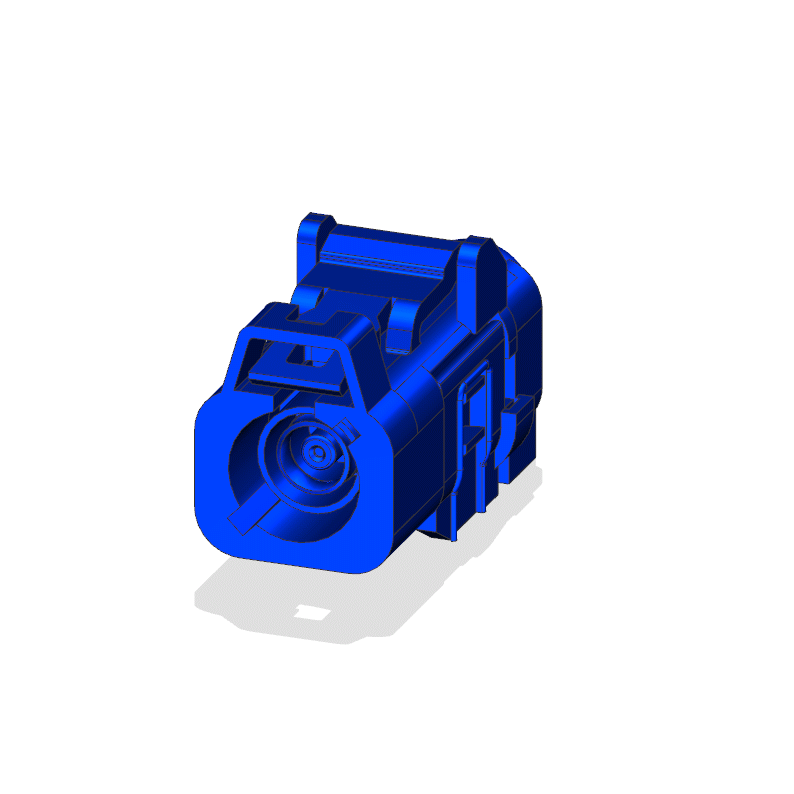

Fig 2: Module-Emergency Assistance C2 Isometric View (Standard)

Courtesy of CHRYSLER

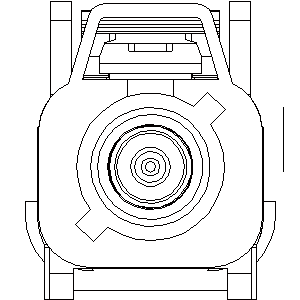

Fig 3: Module-Emergency Assistance C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Emergency Assistance C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J231	BK/BK	0.20	COAX - NAV GPS SIG	N/A
