Module-Driver Detection (Standard) Connector End View (D3288A)

Harness-Family: Seat_Cushion_Driver

Color: BLACK

Gender: FEMALE

Part Number: 31403-6114

Part Description: Not Available

Connector No: D3288A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

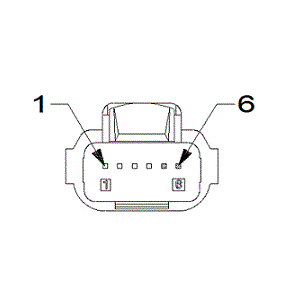

Fig 1: Module-Driver Detection Connector End View (Standard)

Courtesy of CHRYSLER

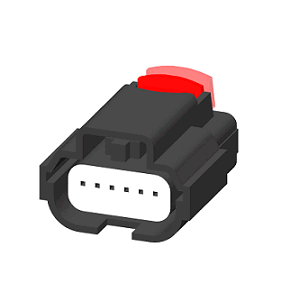

Fig 2: Module-Driver Detection Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Driver Detection Wire Insertion View (Standard)

Courtesy of CHRYSLER

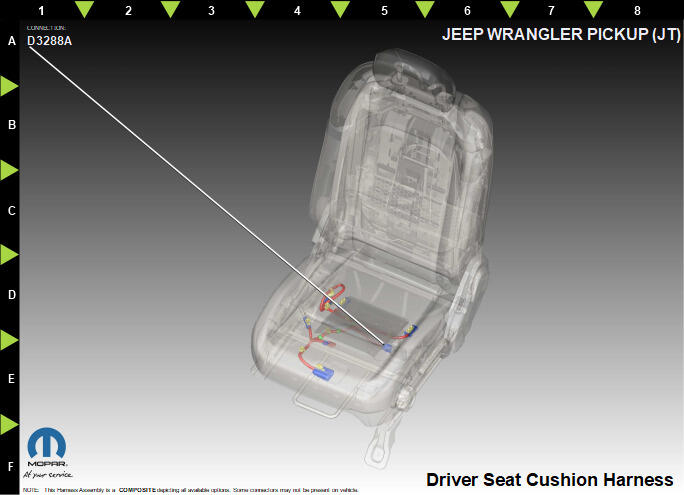

Fig 4: Module-Driver Detection Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F915	PK	0.50	FUSED IGNITION RUN/START	N/A
2	D43	OG	0.35	CAN C (+)	N/A
3	D44	YE	0.35	CAN C (-)	N/A
4	Z917	BK	0.35	GROUND	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
