Module-Driver Assistant System (Standard) Connector End View (D3940A)

Harness-Family: Mirror

Color: BLACK

Gender: FEMALE

Part Number: 35238885

Part Description: Not Available

Connector No: D3940A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 10

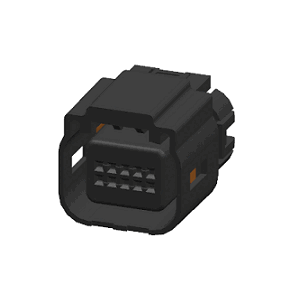

Fig 1: Module-Driver Assistant System Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Driver Assistant System Isometric View (Standard)

Courtesy of CHRYSLER

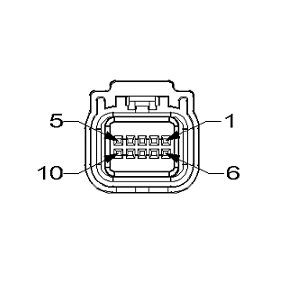

Fig 3: Module-Driver Assistant System Wire Insertion View (Standard)

Courtesy of CHRYSLER

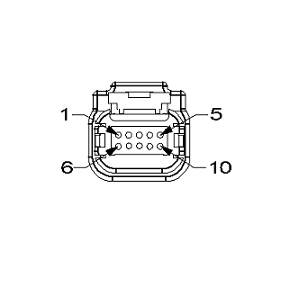

Fig 4: Module-Driver Assistant System Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F916	PK/BU	0.75	FUSED IGNITION RUN/START	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	Z910	BK	0.75	GROUND	N/A
5	N0	NA	0	NO CONNECT	N/A
6	D461	YE/GY	0.75	CAN C (+)	N/A
7	D460	YE	0.75	CAN C (-)	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
