Module-Drive Train Control C3 (Standard) Connector End View (D3872C)

Harness-Family: Body

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 15466671

Part Description: GT SERIES CONNECTOR ASSEMBLY

Connector No: D3872C

Option: Standard

Repair Kit Part Number: 68065020AA

Cavity Count: 4

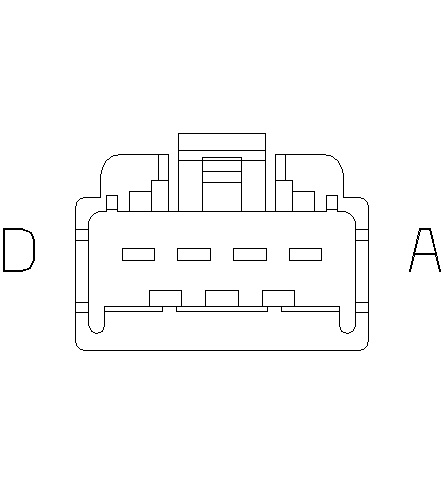

Fig 1: Module-Drive Train Control C3 Connector End View (Standard)
GCWD1006537Courtesy of CHRYSLER

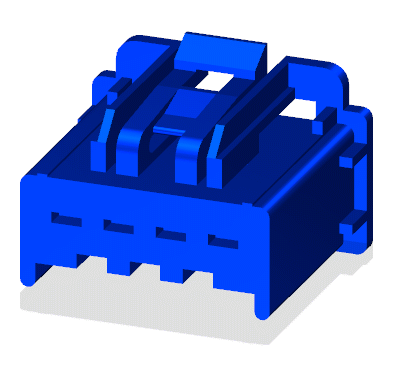

Fig 2: Module-Drive Train Control C3 Isometric View (Standard)
GCWD1088220Courtesy of CHRYSLER

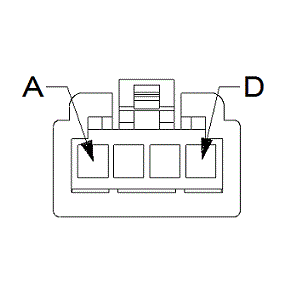

Fig 3: Module-Drive Train Control C3 Wire Insertion View (Standard)
GCWD1008706Courtesy of CHRYSLER

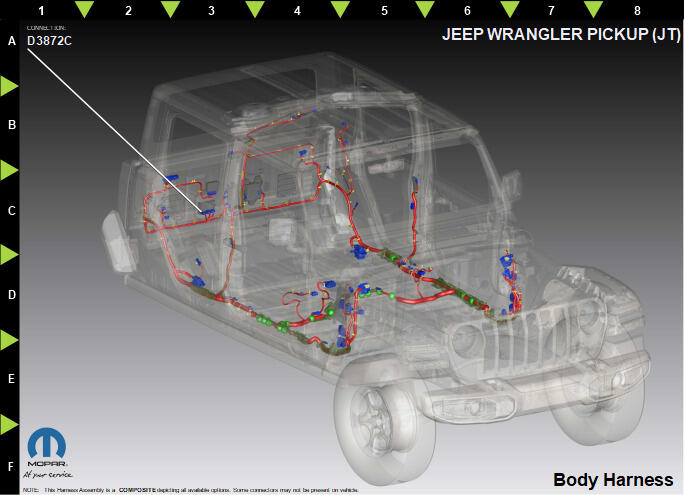

Fig 4: Module-Drive Train Control C3 Component Location View (Standard)
GCWD1318468Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
A N0 NA 0 NO CONNECT EXCEPT EXPORT
A T316 YE/GY 2.5 SHIFT MOTOR CONTROL B EXPORT
B N0 NA 0 NO CONNECT EXCEPT EXPORT
B T315 YE/BN 2.5 SHIFT MOTOR CONTROL A EXPORT
C A194 RD/GY 2.5 FUSED B(+) N/A
D Z916 BK/YE 2.5 GROUND N/A
