Module-Drive Train Control C2 (Standard) Connector End View (D3872B)

Harness-Family: Body

Color: GRAY

Gender: FEMALE

Part Number: 7283-3585-40

Part Description: Not Available

Connector No: D3872B

Option: Standard

Repair Kit Part Number: 68490752AA

Cavity Count: 16

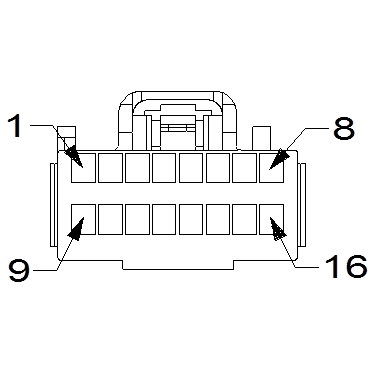

Fig 1: Module-Drive Train Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

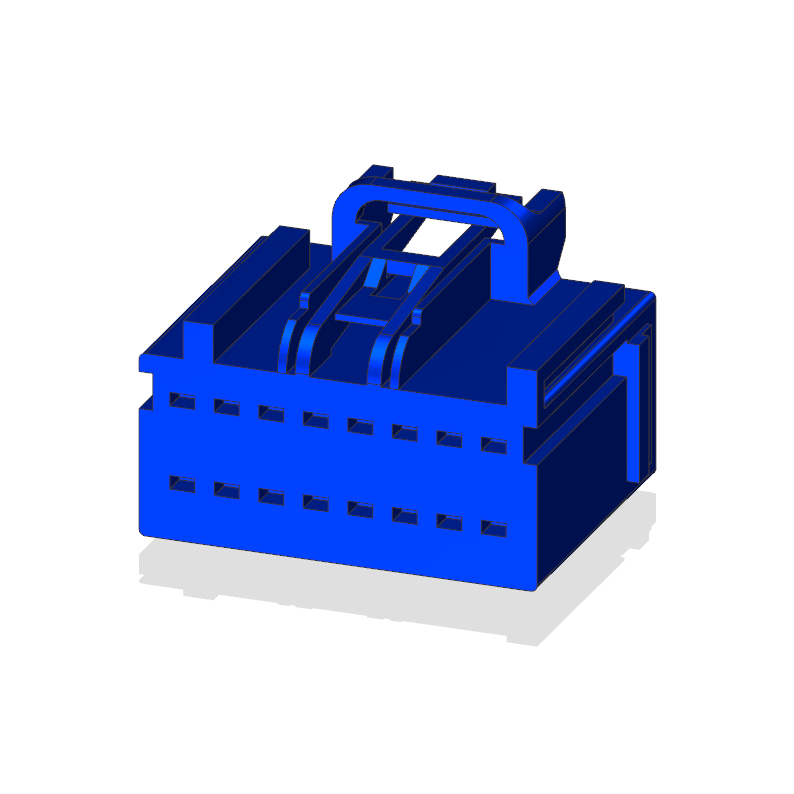

Fig 2: Module-Drive Train Control C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Drive Train Control C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

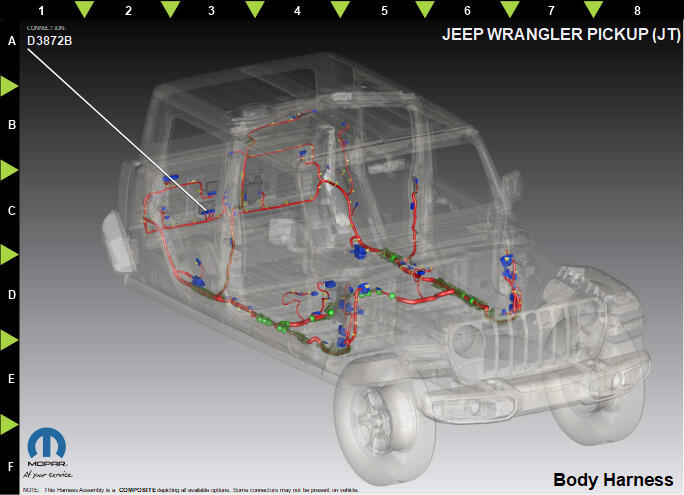

Fig 4: Module-Drive Train Control C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	T538	YE/DB	0.35	LOCKER SENSOR RETURN REAR	N/A
11	T527	YE/BG	0.35	REAR LOCKER SWITCH SENSE	N/A
12	T528	YE/GY	0.75	REAR LOCKER RETURN	N/A
13	N0	NA	0	NO CONNECT	N/A
14	T522	YE/BU	0.35	FRONT LOCKER SWITCH SENSE	N/A
15	T523	YE/BG	0.35	LOCKER SENSOR RETURN	N/A
16	T524	YE/GN	0.75	FRONT LOCKER RETURN	N/A
