Module-Compass (Standard) Connector End View (D3865A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: HCMPB-04-K

Part Description: HCM 4P Female HOUSING ASSEMBLY

Connector No: D3865A

Option: Standard

Repair Kit Part Number: 68496365AA

Cavity Count: 4

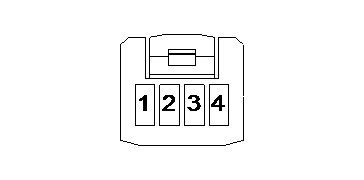

Fig 1: Module-Compass Connector End View (Standard)

Courtesy of CHRYSLER

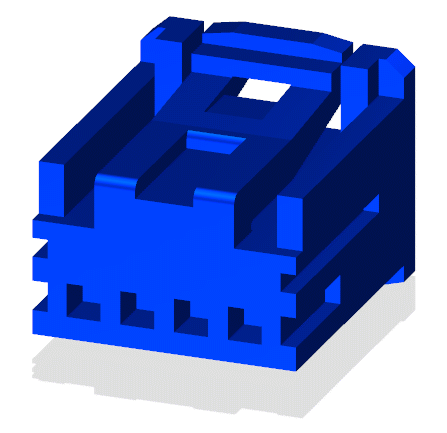

Fig 2: Module-Compass Isometric View (Standard)

Courtesy of CHRYSLER

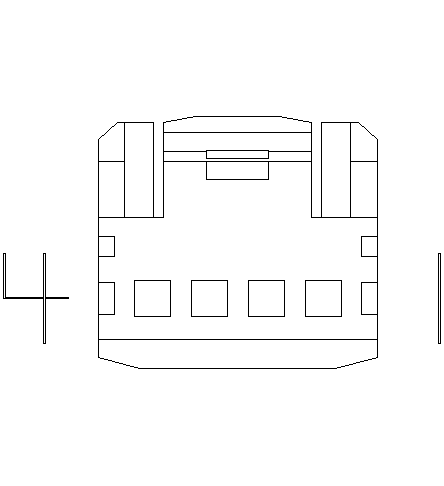

Fig 3: Module-Compass Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Compass Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	D402	OG/VT	0.35	LIN BUS CBC 2	N/A
3	Z912	BK/GN	0.50	GROUND	N/A
4	F982	PK/YE	0.35	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)	N/A
