Module-Comfort Seat Steering Wheel C3 (Standard) Connector End View (D3846C)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1-929173-5_2177231-1

Part Description: Not Available

Connector No: D3846C

Option: Standard

Repair Kit Part Number: 68496364AA

Cavity Count: 6

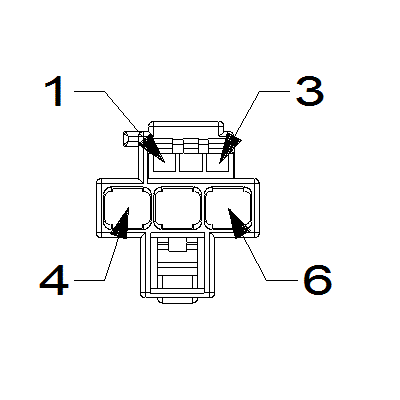

Fig 1: Module-Comfort Seat Steering Wheel C3 Connector End View (Standard)

Courtesy of CHRYSLER

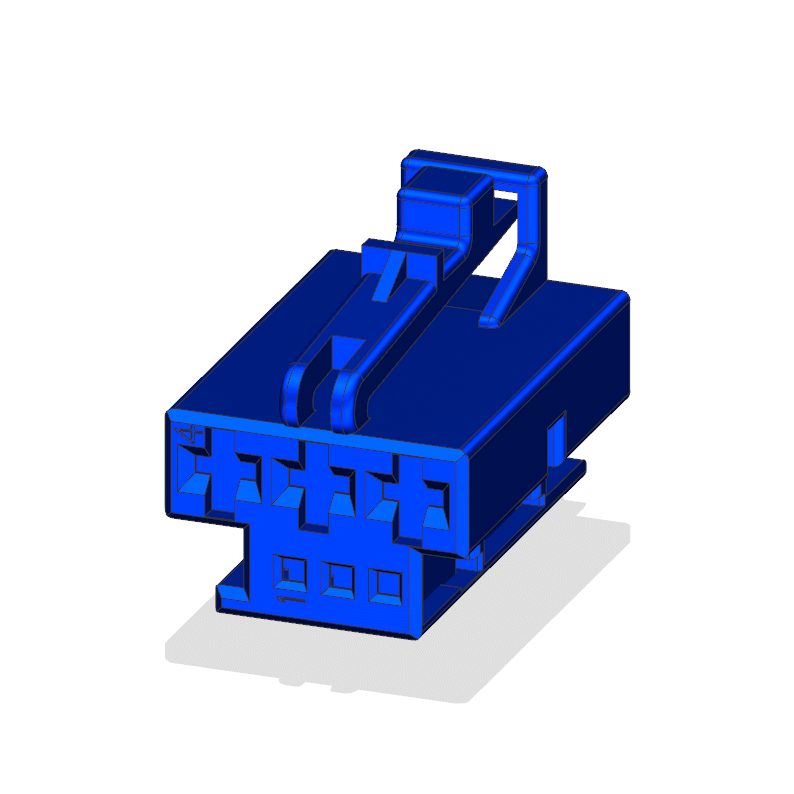

Fig 2: Module-Comfort Seat Steering Wheel C3 Isometric View (Standard)

Courtesy of CHRYSLER

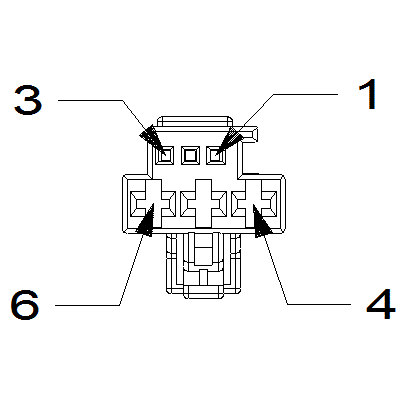

Fig 3: Module-Comfort Seat Steering Wheel C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Comfort Seat Steering Wheel C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P413	OG/GY	0.35	DRIVER FRONT HEATED SEAT CUSHION TEMP SENSE	RHD
1	P417	GN/GY	0.35	PASSENGER FRONT HEATED SEAT CUSHION TEMP SENSE	LHD
2	P418	BG/VT	0.35	PASSENGER FRONT HEATED SEAT BACK TEMP SENSE	LHD
2	P415	OG/VT	0.35	DRIVER FRONT HEATED SEAT BACK TEMP SENSE	RHD
3	N0	NA	0	NO CONNECT	N/A
4	F506	PK/OG	0.75	PASSENGER SEAT CUSHION SUPPLY	LHD
4	F503	OG/PK	0.75	DRIVER SEAT CUSHION SUPPLY	RHD
5	F508	PK/GN	0.75	PASSENGER SEAT BACK SUPPLY	LHD
5	F507	GN/PK	0.75	DRIVER SEAT BACK SUPPLY	RHD
6	F922	PK/YE	1.0	FUSED IGNITION	N/A
