Module-Comfort Seat Steering Wheel C1 (Standard) Connector End View (D3846A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1-2177196-1_2177231-1

Part Description: Not Available

Connector No: D3846A

Option: Standard

Repair Kit Part Number: 68535909AA

Cavity Count: 5

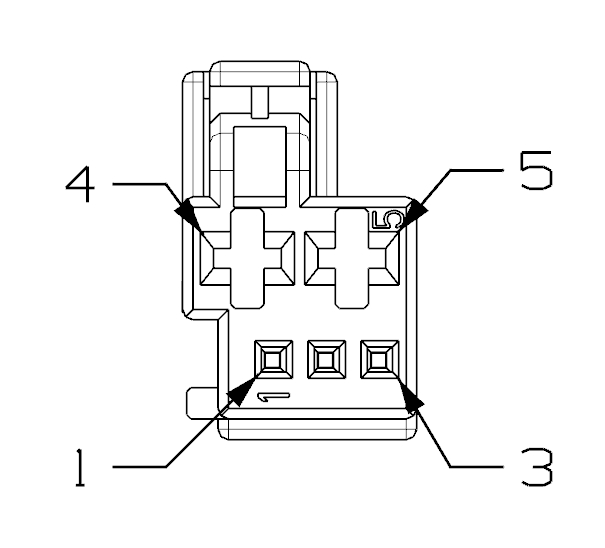

Fig 1: Module-Comfort Seat Steering Wheel C1 Connector End View (Standard)

Courtesy of CHRYSLER

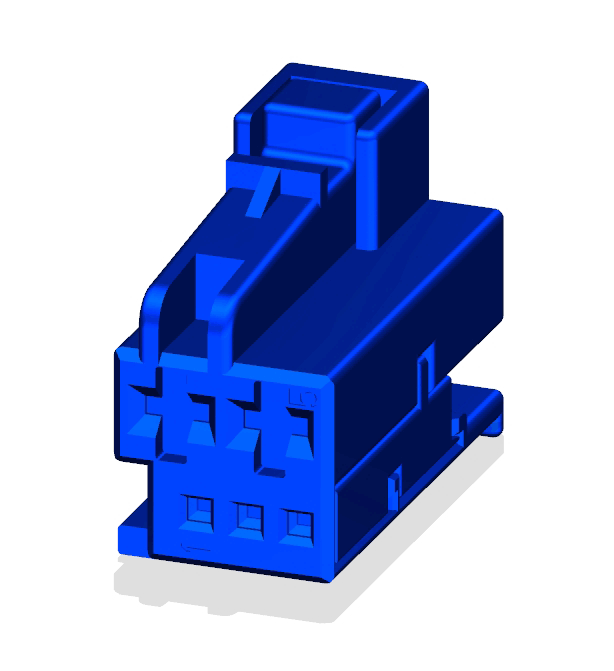

Fig 2: Module-Comfort Seat Steering Wheel C1 Isometric View (Standard)

Courtesy of CHRYSLER

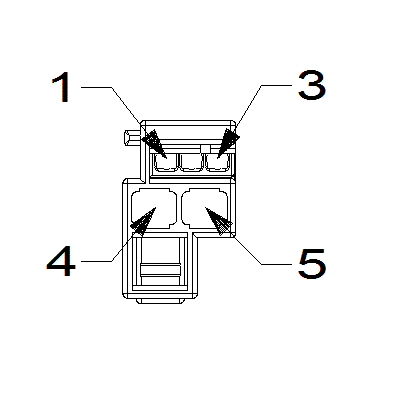

Fig 3: Module-Comfort Seat Steering Wheel C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Module-Comfort Seat Steering Wheel C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D163	WH/DB	0.35	CAN IHS (+)	N/A
2	D164	WH	0.35	CAN IHS (-)	N/A
3	N0	NA	0	NO CONNECT	N/A
4	F921	PK/YE	1.0	FUSED IGNITION	N/A
5	Z914	BK	1.0	GROUND	N/A
