Module-Central Vision Processing C6 (Standard) Connector End View (D2999F)

Harness-Family: Body

Color: VIOLET

Gender: FEMALE

Part Number: 2035141-8

Part Description: Not Available

Connector No: D2999F

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

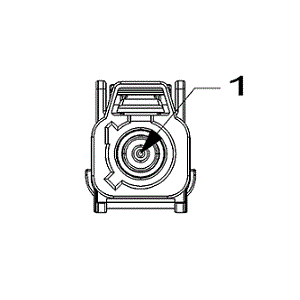

Fig 1: Module-Central Vision Processing C6 Connector End View (Standard)

Courtesy of CHRYSLER

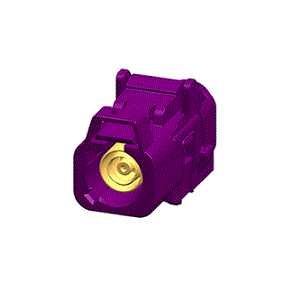

Fig 2: Module-Central Vision Processing C6 Isometric View (Standard)

Courtesy of CHRYSLER

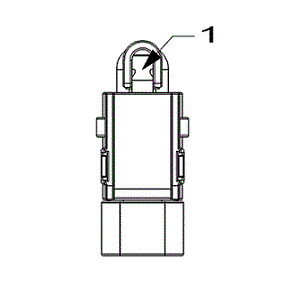

Fig 3: Module-Central Vision Processing C6 Wire Insertion View (Standard)

Courtesy of CHRYSLER

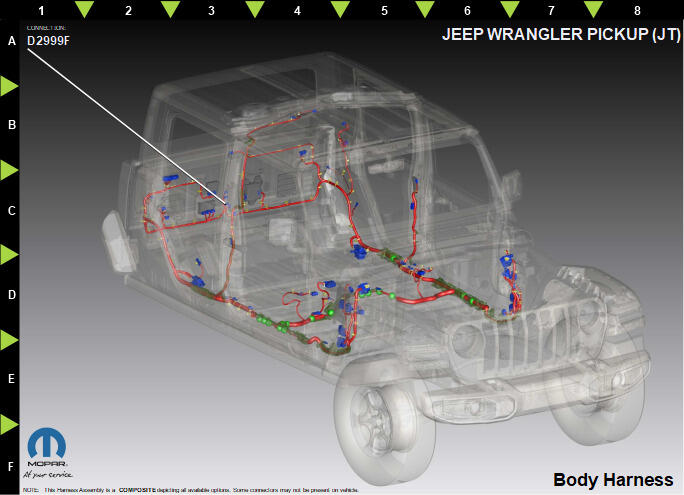

Fig 4: Module-Central Vision Processing C6 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J228	BK	0.82	CAMERA COAX CABLE	N/A
