Module-Central Vision Processing C4 (Standard) Connector End View (D2999D)

Harness-Family: Body

Color: ORANGE

Gender: FEMALE

Part Number: 1-2035141-2

Part Description: Not Available

Connector No: D2999D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

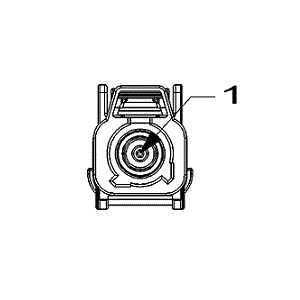

Fig 1: Module-Central Vision Processing C4 Connector End View (Standard)

Courtesy of CHRYSLER

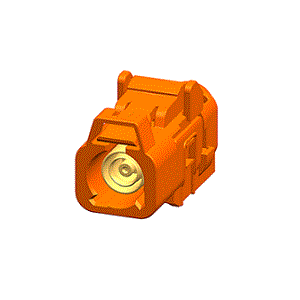

Fig 2: Module-Central Vision Processing C4 Isometric View (Standard)

Courtesy of CHRYSLER

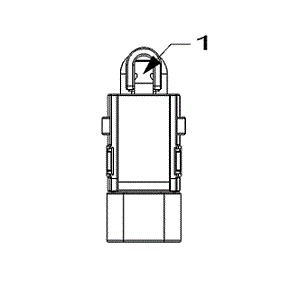

Fig 3: Module-Central Vision Processing C4 Wire Insertion View (Standard)

Courtesy of CHRYSLER

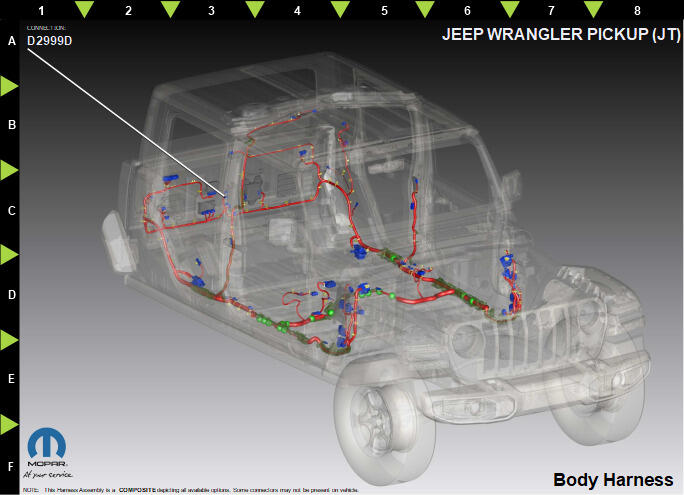

Fig 4: Module-Central Vision Processing C4 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J220	BK	0.82	COAX CABLE A LVDS CAMERA REAR SIG	N/A
