Module-Central Vision Processing C2 (Standard) Connector End View (D2999B)

Harness-Family: Body

Color: GREEN

Gender: FEMALE

Part Number: 1-1719261-4

Part Description: Not Available

Connector No: D2999B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

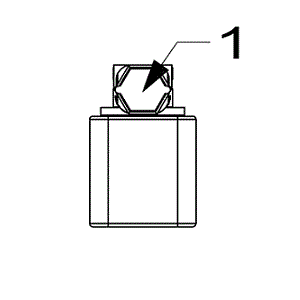

Fig 1: Module-Central Vision Processing C2 Connector End View (Standard)

Courtesy of CHRYSLER

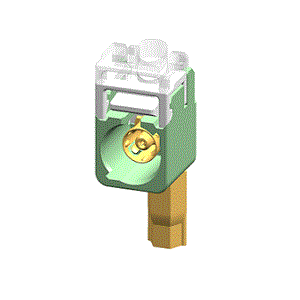

Fig 2: Module-Central Vision Processing C2 Isometric View (Standard)

Courtesy of CHRYSLER

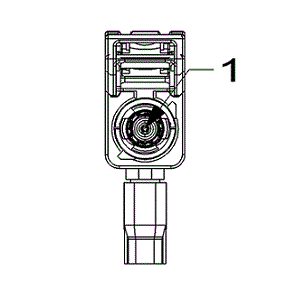

Fig 3: Module-Central Vision Processing C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

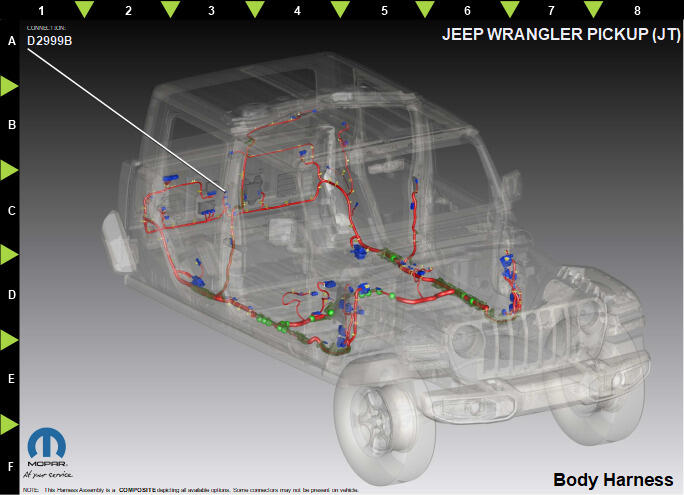

Fig 4: Module-Central Vision Processing C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J222	BK	0.20	COAX CABLE A LVDS CAMERA FRONT SIG	N/A
