Module-Central Vision Processing C1 (Standard) Connector End View (D2999A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 34824-0124

Part Description: Not Available

Connector No: D2999A

Option: Standard

Repair Kit Part Number: TBD 19HD-4

Cavity Count: 12

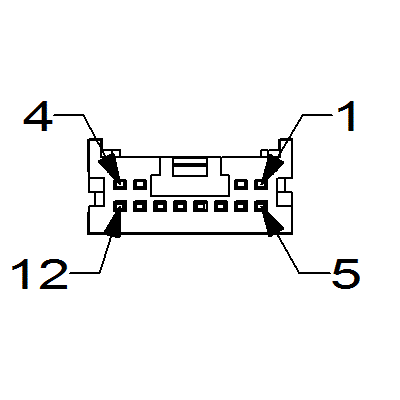

Fig 1: Module-Central Vision Processing C1 Connector End View (Standard)

Courtesy of CHRYSLER

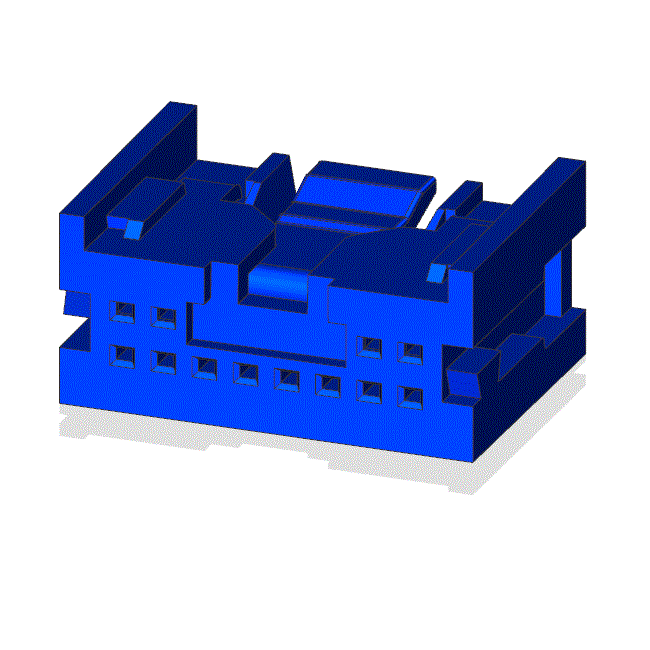

Fig 2: Module-Central Vision Processing C1 Isometric View (Standard)

Courtesy of CHRYSLER

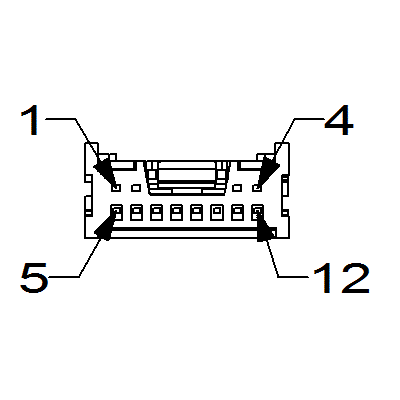

Fig 3: Module-Central Vision Processing C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

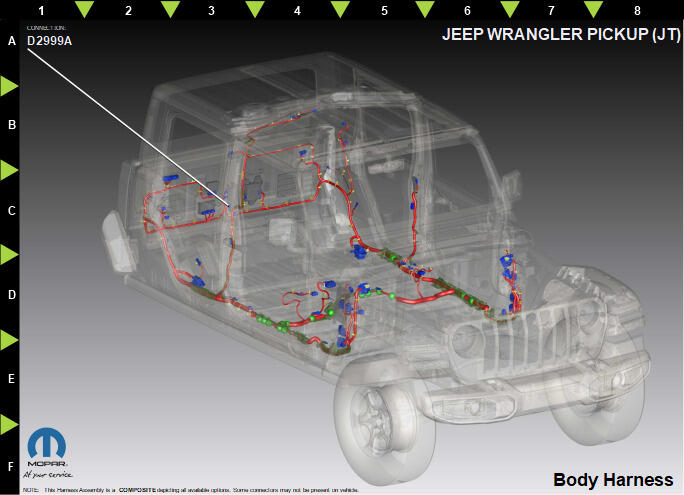

Fig 4: Module-Central Vision Processing C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	F928	PK/YE	0.35	IGNITION RUN OUTPUT	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	D263	DB	0.35	CAN IHS (+)	N/A
9	D262	WH/OG	0.35	CAN IHS (-)	N/A
10	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	Z916	BK/YE	0.35	GROUND	N/A
