Module-Body Control C3/C (Standard) Connector End View (D3806C)

Harness-Family: Dash

Color: NATURAL

Gender: FEMALE

Part Number: 7287-3831

Part Description: Not Available

Connector No: D3806C

Option: Standard

Repair Kit Part Number: 68498841AA

Cavity Count: 4

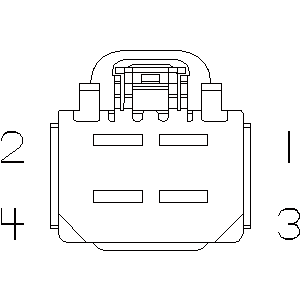

Fig 1: Module-Body Control C3/c Connector End View (Standard)
GCWD1006602Courtesy of CHRYSLER

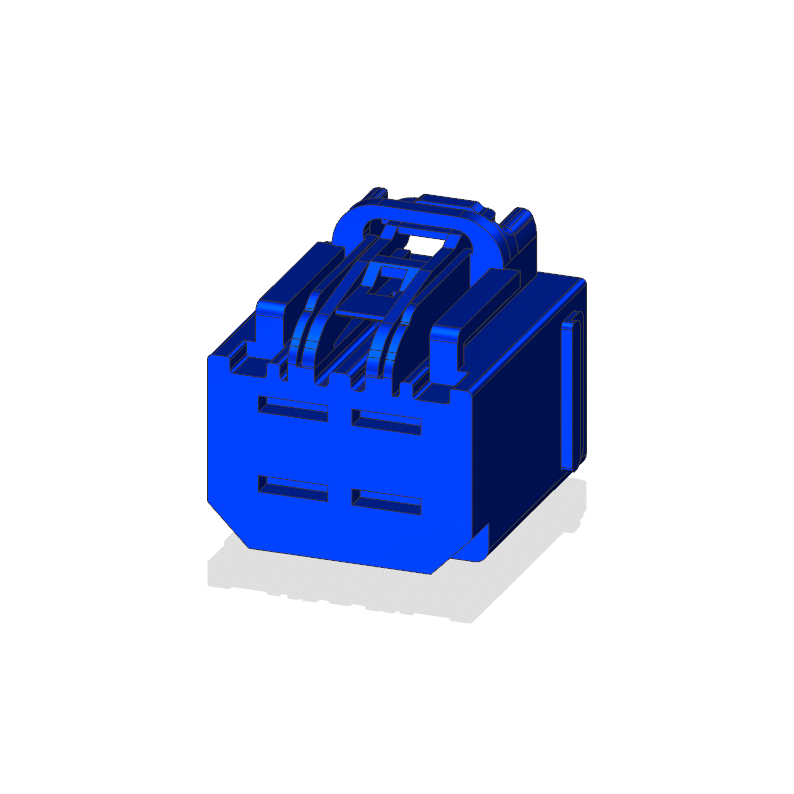

Fig 2: Module-Body Control C3/c Isometric View (Standard)
GCWD1308545Courtesy of CHRYSLER
Fig 3: Module-Body Control C3/c Wire Insertion View (Standard)
GCWD1010527Courtesy of CHRYSLER

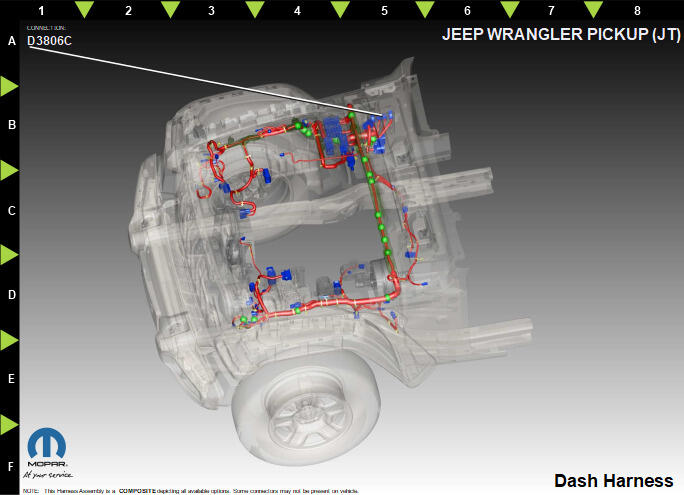

Fig 4: Module-Body Control C3/c Component Location View (Standard)
GCWD1318305Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A237 RD/GN 2.0 FUSED B(+) N/A
2 Z906 BK/GY 2.0 GROUND N/A
3 A906 RD/GY 3.0 FUSED B(+) N/A
4 A239 RD/BG 3.0 FUSED B(+) N/A
