Module-Body Control C2/B (Standard) Connector End View (D3806B)

Harness-Family: Dash

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-6469-40

Part Description: KAIZEN CONNECTOR SUB ASSEMBLY

Connector No: D3806B

Option: Standard

Repair Kit Part Number: 68052581AA

Cavity Count: 4

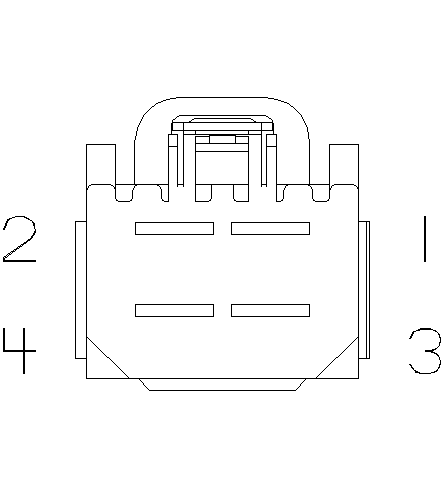

Fig 1: Module-Body Control C2/b Connector End View (Standard)

Courtesy of CHRYSLER

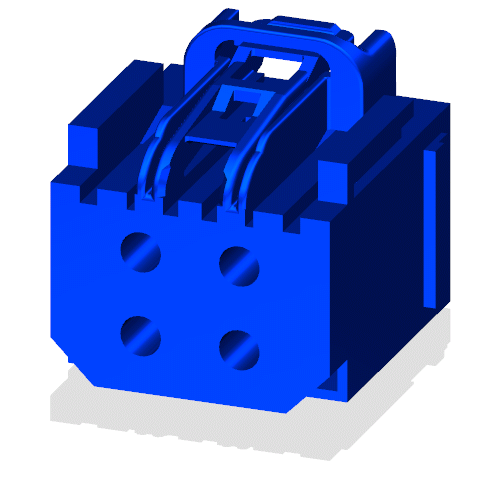

Fig 2: Module-Body Control C2/b Isometric View (Standard)

Courtesy of CHRYSLER

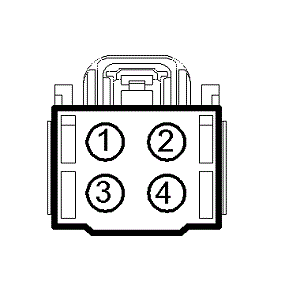

Fig 3: Module-Body Control C2/b Wire Insertion View (Standard)

Courtesy of CHRYSLER

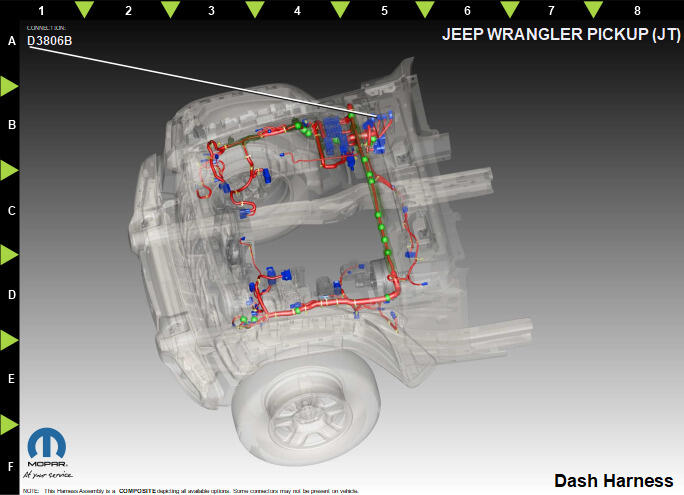

Fig 4: Module-Body Control C2/b Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z906	BK/GY	1.0	GROUND	N/A
2	N0	NA	0	NO CONNECT	N/A
3	A904	VT/RD	3.0	FUSED B(+)	N/A
4	N0	NA	0	NO CONNECT	N/A
