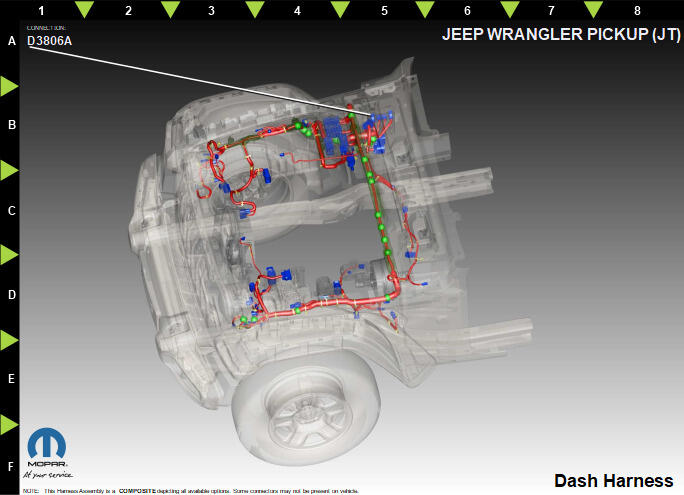

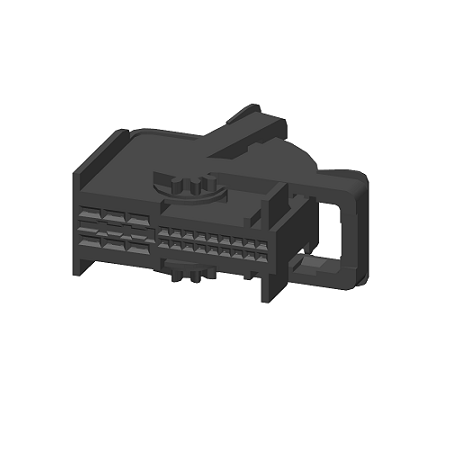

Module-Body Control C1/A (Standard) Connector End View (D3806A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 13850155_13850159

Part Description: Not Available

Connector No: D3806A

Option: Standard

Repair Kit Part Number: 68440528AA

Cavity Count: 24

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L89	WH/YE	0.75	LEFT FRONT FOG LAMP CONTROL	N/A
2	L34	WH/GY	1.5	RIGHT HIGH BEAM DRIVER	N/A
3	L43	WH/DB	1.5	LEFT LOW BEAM DRIVER	N/A
4	L77	WH/BN	0.75	LEFT FRONT PARK LAMP DRIVER	N/A
5	L118	BG/OG	0.50	RIGHT FRONT PARK LAMP DRIVER	EXCEPT EXPORT PREMIUM
5	L160	WH/BG	0.35	TURN SIGNAL CONTROL	EXPORT ONLY
6	W7	BN/GY	0.50	WIPER PARK SWITCH SENSE	N/A
7	L117	BG/DB	0.50	LEFT FRONT PARK LAMP DRIVER	EXCEPT EXPORT PREMIUM
7	L161	WH/GN	0.35	TURN SIGNAL CONTROL	EXPORT ONLY
8	W1	BN/BG	0.50	WASHER FLUID LEVEL SWITCH SENSE	N/A
9	W11	BN/VT	0.50	LOW WASH SW RTN 1	N/A
10	L145	WH/OG	0.75	LEFT SIDE MARKER CONTROL	N/A
11	G70	VT/BU	0.35	HOOD AJAR SWITCH SENSE	N/A
12	W8	BN/BU	0.35	WIPER ON/OFF RELAY CONTROL	N/A
13	L60	WH/BG	0.75	RIGHT FRONT TURN LAMP DRIVER	N/A
14	W39	BN/VT	0.50	FRONT CAMERA WASHER PUMP MOTOR CONTROL	N/A
15	W18	BN	0.50	FRONT WASHER PUMP MOTOR CONTROL	N/A
16	N0	NA	0	NO CONNECT	N/A
17	N0	NA	0	NO CONNECT	N/A
18	K617	BN	0.35	RUN/START RELAY CONTROL	N/A
19	N0	NA	0	NO CONNECT	N/A
20	W2	BN/GN	0.35	WIPER HIGH/LOW RELAY CONTROL	N/A
21	N0	NA	0	NO CONNECT	N/A
22	L59	WH/DB	0.75	RIGHT DRL LAMP DRIVER	N/A
23	X4	DG/WH	0.35	HORN RELAY CONTROL	N/A
24	F1	PK/WH	0.75	IGNITION OFF/RUN/START CONTROL OUTPUT	N/A
