Module-Axle Disconnect-Front (Standard) Connector End View (D3936A)

Harness-Family: Chassis_RT

Color: BLACK

Gender: FEMALE

Part Number: 805-122-581

Part Description: Not Available

Connector No: D3936A

Option: Standard

Repair Kit Part Number: 68396618AA

Cavity Count: 4

Fig 1: Module-Axle Disconnect-Front Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Axle Disconnect-Front Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Axle Disconnect-Front Wire Insertion View (Standard)

Courtesy of CHRYSLER

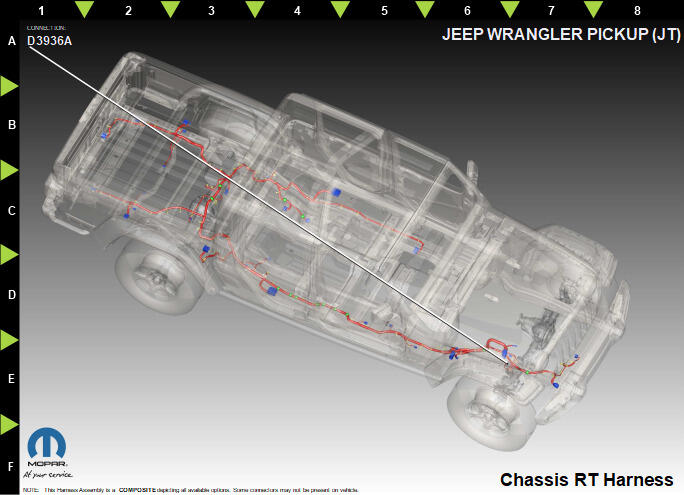

Fig 4: Module-Axle Disconnect-Front Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F525	DG/PK	0.75	FUSED IGNITION SWITCH OUTPUT (RUN)	N/A
2	G304	VT/DB	0.75	FRONT AXLE LOCK CONTROL	N/A
3	G303	VT/DG	0.75	FRONT AXLE LOCK SIGNAL	N/A
4	Z916	BK	0.75	GROUND	N/A
