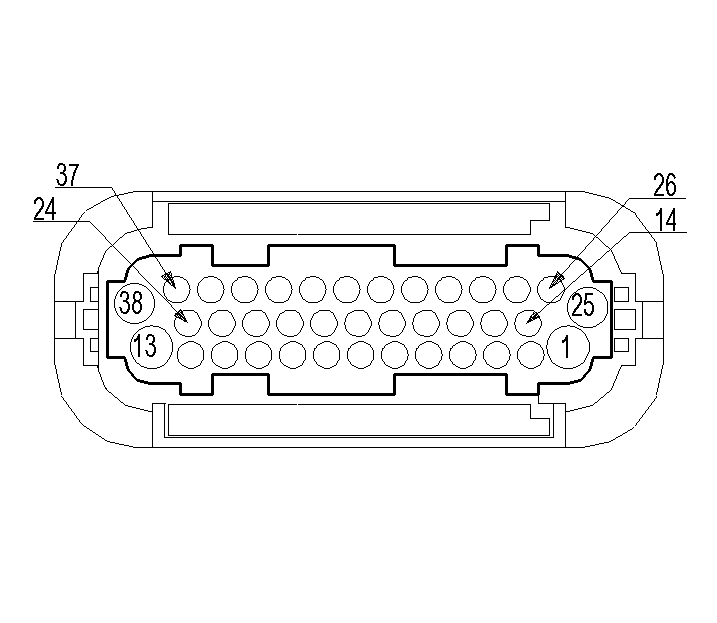

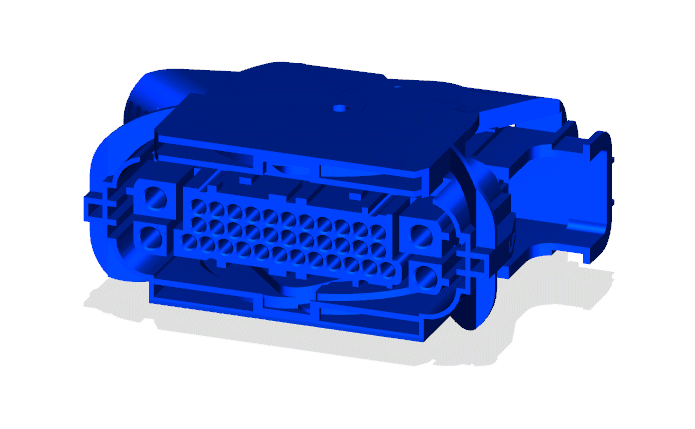

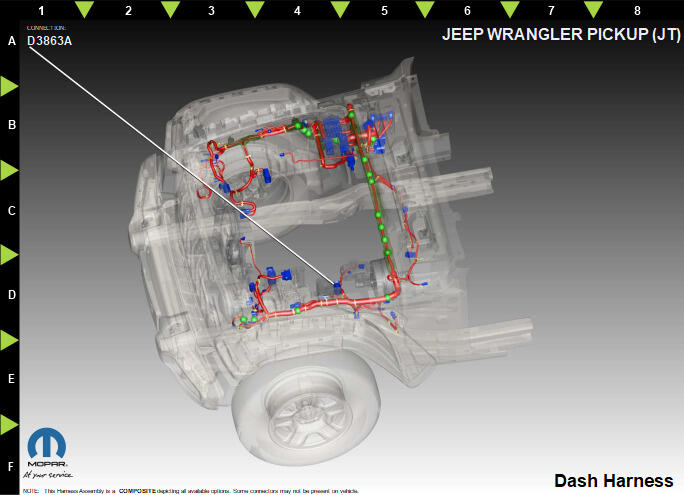

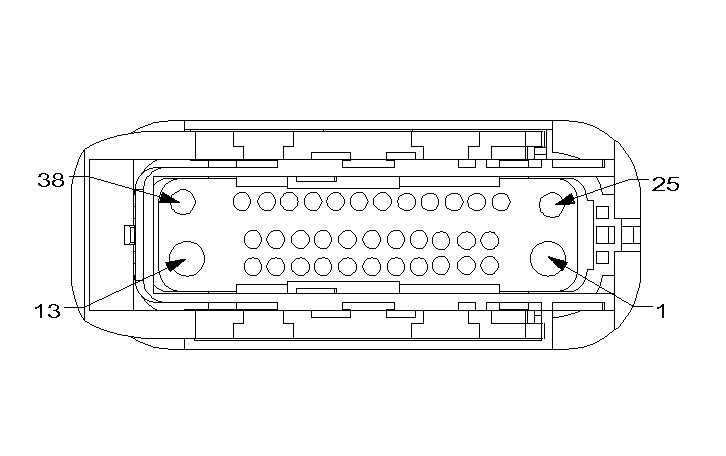

Module-Anti-Lock Brakes (Standard) Connector End View (D3863A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 13579678_13580662

Part Description: Not Available

Connector No: D3863A

Option: Standard

Repair Kit Part Number: 68265998AA

Cavity Count: 38

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A107	BG/RD	4.0	FUSED B(+)	N/A
2	N0	NA	0	NO CONNECT	N/A
3	B237	DG/YE	0.35	PEDAL TRAVEL SNSR FEED	N/A
4	B32	DG/OG	0.35	VACUUM PRESSURE SENSOR SIGNAL	N/A
5	N0	NA	0	NO CONNECT	N/A
6	F941	PK/WH	0.35	IGNITION RUN/START CONTROL OUTPUT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	D498	YE	0.35	CAN C (-)	N/A
11	D497	DB/WH	0.35	CAN C (+)	N/A
12	N0	NA	0	NO CONNECT	N/A
13	Z907	BK	4.0	GROUND	N/A
14	N0	NA	0	NO CONNECT	N/A
15	B15	DG/WH	0.35	BRAKE SIGNAL 1	N/A
16	B31	DG/DB	0.35	VACUUM PRESSURE SENSOR SUPPLY	N/A
17	N0	NA	0	NO CONNECT	N/A
18	N0	NA	0	NO CONNECT	N/A
19	N0	NA	0	NO CONNECT	N/A
20	N0	NA	0	NO CONNECT	N/A
21	N0	NA	0	NO CONNECT	N/A
22	B33	DG/BG	0.35	VACUUM PRESSURE SENSOR RETURN	N/A
23	B137	DG/BN	0.35	PEDAL TRAVEL SNSR SIG	N/A
24	N0	NA	0	NO CONNECT	N/A
25	A200	RD/DG	2.0	FUSED B(+)	N/A
26	B6	DG/WH	0.35	RIGHT FRONT WHEEL SPEED SENSOR (-)	N/A
27	B7	DG/VT	0.35	RIGHT FRONT WHEEL SPEED SENSOR (+)	N/A
28	N0	NA	0	NO CONNECT	N/A
29	B4	DG/GY	0.35	LEFT REAR WHEEL SPEED SENSOR (+)	N/A
30	B3	DG/YE	0.35	LEFT REAR WHEEL SPEED SENSOR (-)	N/A
31	N0	NA	0	NO CONNECT	N/A
32	N0	NA	0	NO CONNECT	EXCEPT EXPORT
32	B22	DG/GN	0.35	VEHICLE SPEED SIGNAL 1	EXPORT
33	B1	DG/OG	0.35	RIGHT REAR WHEEL SPEED SENSOR (-)	N/A
34	B2	DG/BU	0.35	RIGHT REAR WHEEL SPEED SENSOR (+)	N/A
35	B937	DG/OG	0.35	BRAKE PEDAL TRAVEL SENSOR RETURN	N/A
36	B9	DG/GN	0.35	LEFT FRONT WHEEL SPEED SENSOR (+)	N/A
37	B8	DG/BG	0.35	LEFT FRONT WHEEL SPEED SENSOR (-)	N/A
38	N0	NA	0	NO CONNECT	N/A
