Lighter-Cigar-Console (Standard) Connector End View (D6601A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 1480-5000

Part Description: LIGHTER OUTLET CONNECTOR ASSEMBLY

Connector No: D6601A

Option: Standard

Repair Kit Part Number: 05019916AB

Cavity Count: 3

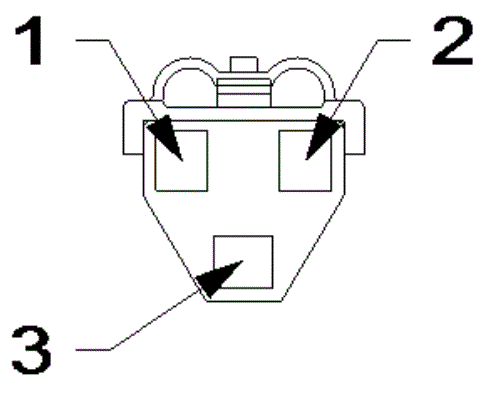

Fig 1: Lighter-Cigar-Console Connector End View (Standard)

Courtesy of CHRYSLER

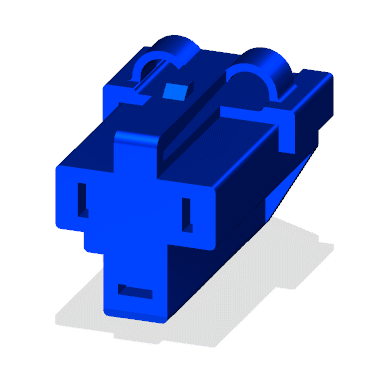

Fig 2: Lighter-Cigar-Console Isometric View (Standard)

Courtesy of CHRYSLER

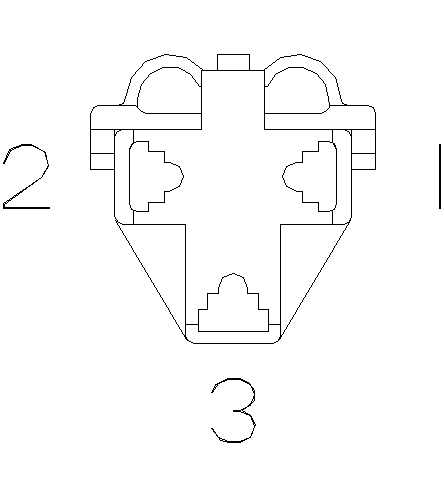

Fig 3: Lighter-Cigar-Console Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Lighter-Cigar-Console Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F986	PK/YE	1.5	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)	N/A
2	E12	OG/GY	0.75	PANEL LAMPS DRIVER	N/A
3	Z910	BK/GY	1.5	GROUND	N/A
