Lamp-Turn-Indicator-Driver Mirror (Standard) Connector End View (D6624E)

Harness-Family: Mirror_Driver

Color: NATURAL

Gender: FEMALE

Part Number: CHL0640-02

Part Description: Not Available

Connector No: D6624E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Lamp-Turn-Indicator-Driver Mirror Connector End View (Standard)
GCWD1092331Courtesy of CHRYSLER

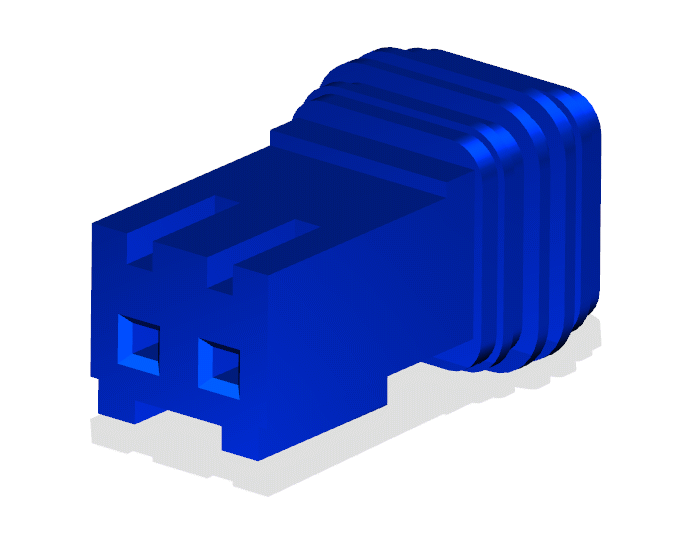

Fig 2: Lamp-Turn-Indicator-Driver Mirror Isometric View (Standard)
GCWD1088345Courtesy of CHRYSLER

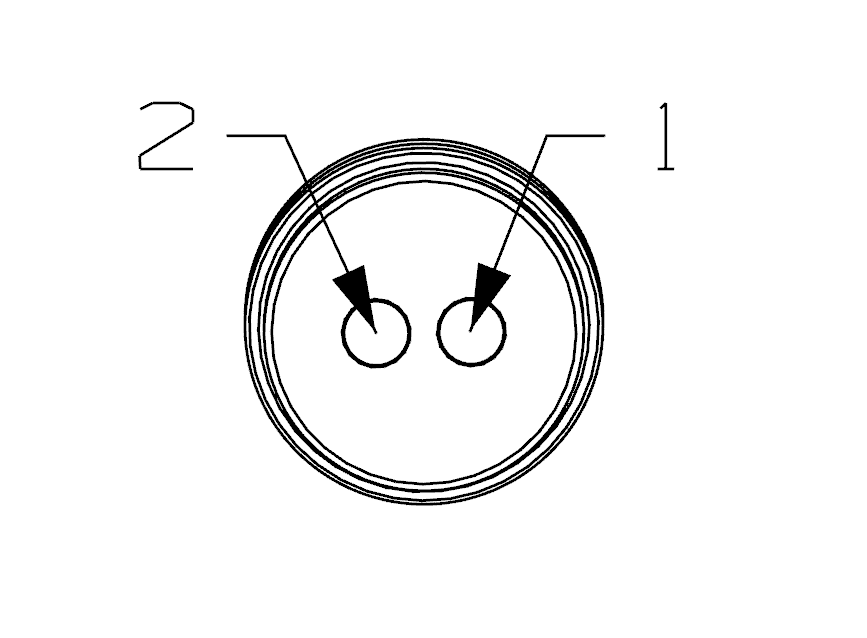

Fig 3: Lamp-Turn-Indicator-Driver Mirror Wire Insertion View (Standard)
GCWD1231770Courtesy of CHRYSLER

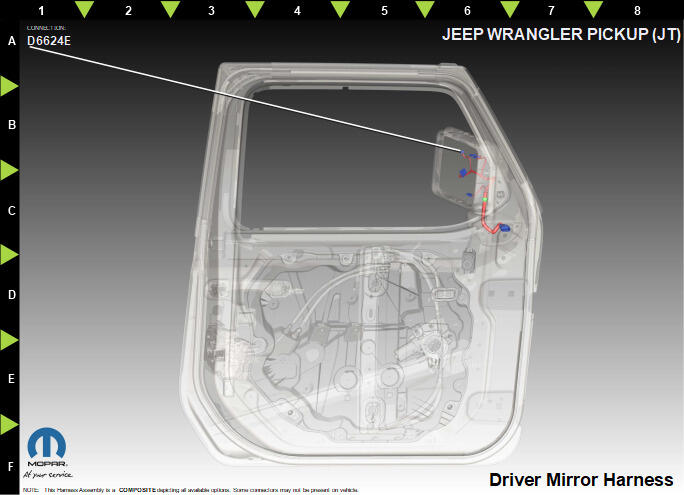

Fig 4: Lamp-Turn-Indicator-Driver Mirror Component Location View (Standard)
GCWD1318280Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z912 BK 0.35 GROUND LHD
1 Z911 GN 0.35 GROUND RHD
2 L160 BU/BK 0.35 TURN SIGNAL CONTROL RHD
2 L161 BU/BK 0.35 TURN SIGNAL CONTROL LHD
