Lamp-Dome-Rear (Standard) Connector End View (D4525A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 805-122-590

Part Description: Not Available

Connector No: D4525A

Option: Standard

Repair Kit Part Number: 68396618AA

Cavity Count: 4

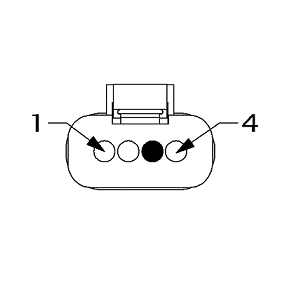

Fig 1: Lamp-Dome-Rear Connector End View (Standard)

Courtesy of CHRYSLER

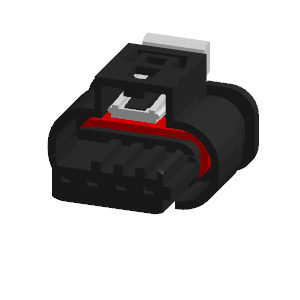

Fig 2: Lamp-Dome-Rear Isometric View (Standard)

Courtesy of CHRYSLER

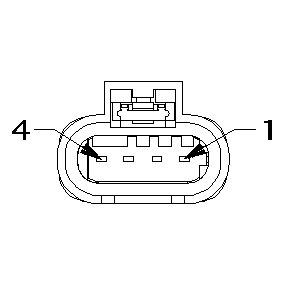

Fig 3: Lamp-Dome-Rear Wire Insertion View (Standard)

Courtesy of CHRYSLER

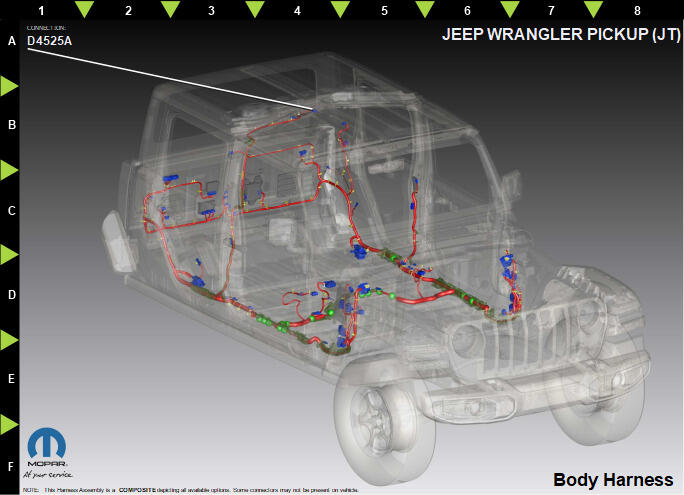

Fig 4: Lamp-Dome-Rear Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	M27	YE/BU	0.50	READING LAMPS DRIVER	N/A
2	M11	YE/VT	0.35	COURTESY LAMPS DRIVER	N/A
3	N0	NA	0	NO CONNECT	N/A
4	Z915	BK/YE	0.35	GROUND	N/A
