Lamp-Console-Center (Standard) Connector End View (D4507A)

Harness-Family: Console

Color: BLACK

Gender: FEMALE

Part Number: 2138557-1

Part Description: Not Available

Connector No: D4507A

Option: Standard

Repair Kit Part Number: 68599367AA

Cavity Count: 2

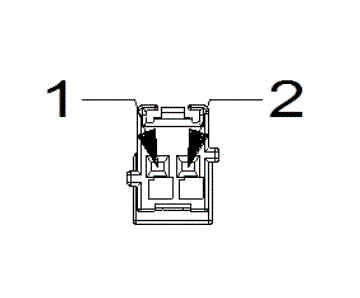

Fig 1: Lamp-Console-Center Connector End View (Standard)

Courtesy of CHRYSLER

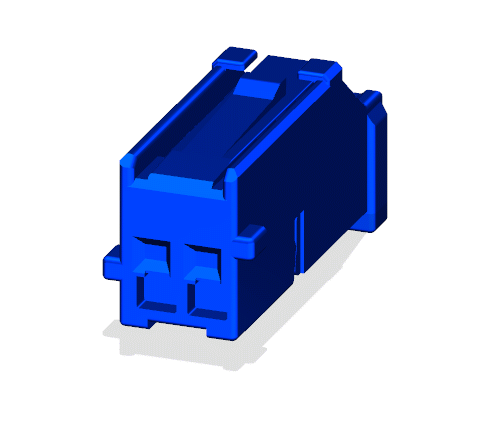

Fig 2: Lamp-Console-Center Isometric View (Standard)

Courtesy of CHRYSLER

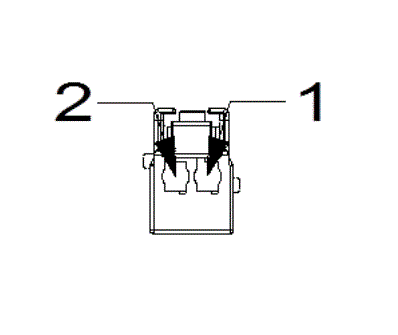

Fig 3: Lamp-Console-Center Wire Insertion View (Standard)

Courtesy of CHRYSLER

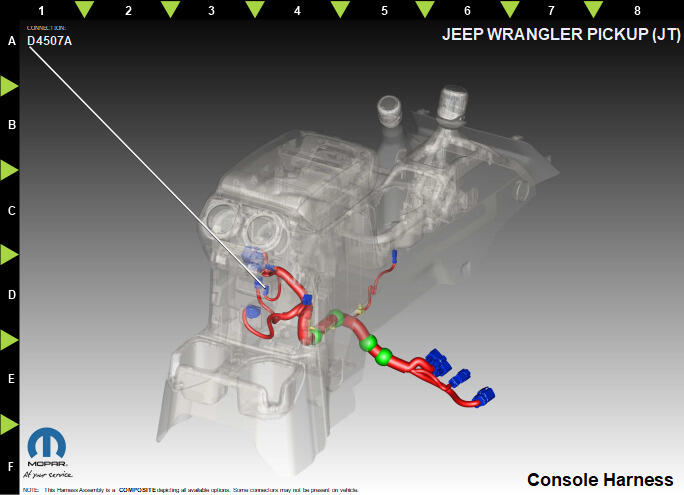

Fig 4: Lamp-Console-Center Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	M27	YE/BU	0.75	READING LAMPS DRIVER	N/A
2	Z912	BK	0.35	GROUND	N/A
