Lamp-Cargo (Standard) Connector End View (D4504A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1456983-1

Part Description: Not Available

Connector No: D4504A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

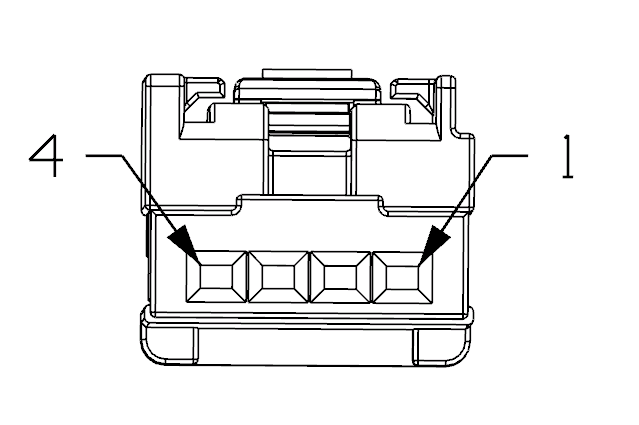

Fig 1: Lamp-Cargo Connector End View (Standard)

Courtesy of CHRYSLER

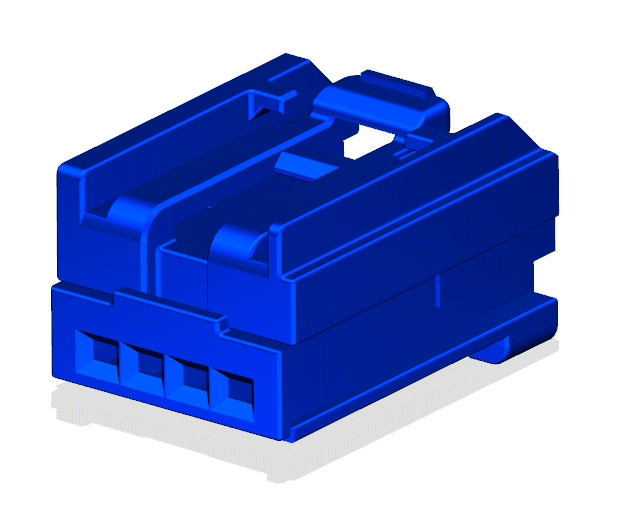

Fig 2: Lamp-Cargo Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Lamp-Cargo Wire Insertion View (Standard)

Courtesy of CHRYSLER

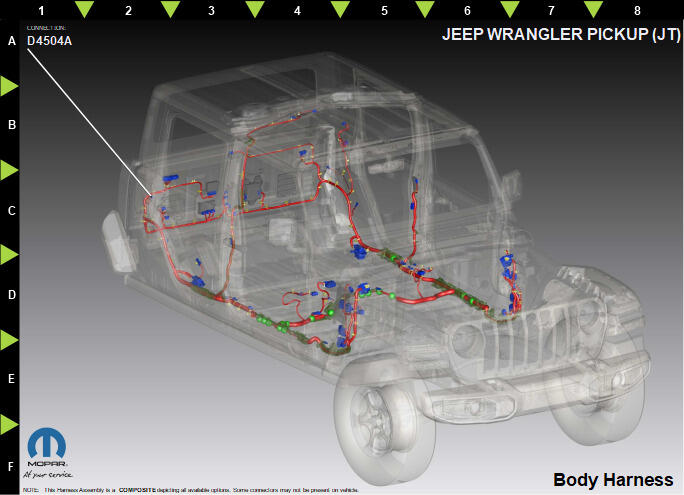

Fig 4: Lamp-Cargo Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z916	BK	0.35	GROUND	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	M11	YE/VT	0.35	COURTESY LAMPS DRIVER	N/A
