Lamp-CUPHOLDER-Front (Standard) Connector End View (D2326A)

Harness-Family: Console

Color: WHITE

Gender: MALE

Part Number: 02T-JWPF-VSLE-S-T

Part Description: Not Available

Connector No: D2326A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Lamp-Cupholder-Front Connector End View (Standard)

Courtesy of CHRYSLER

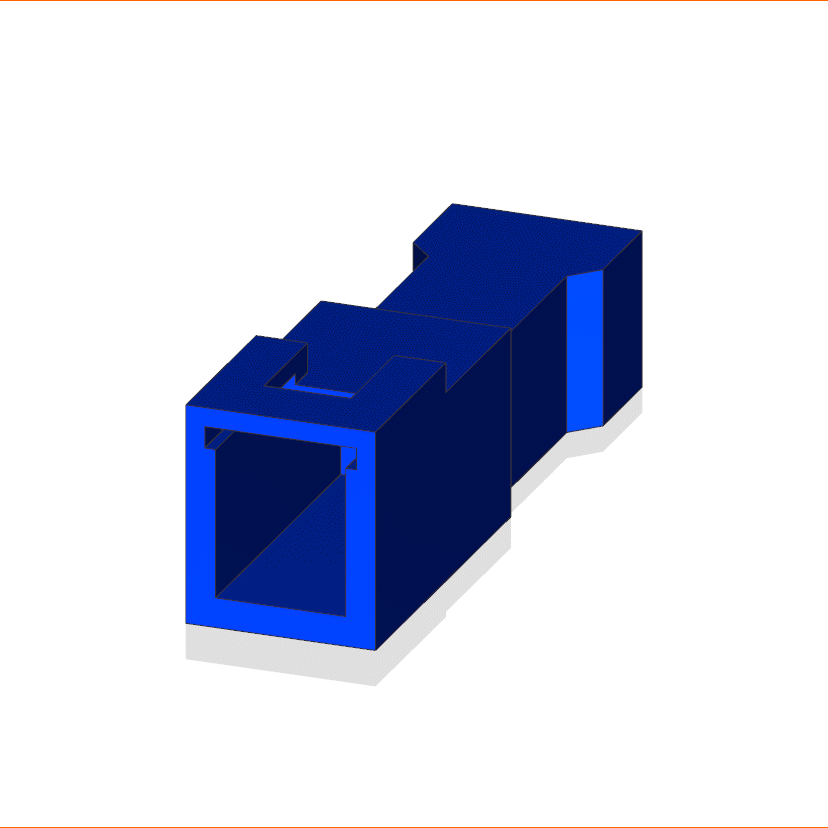

Fig 2: Lamp-Cupholder-Front Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Lamp-Cupholder-Front Wire Insertion View (Standard)

Courtesy of CHRYSLER

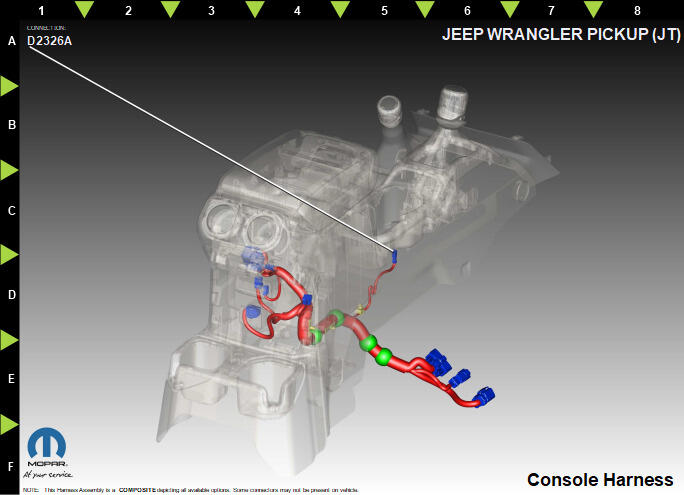

Fig 4: Lamp-Cupholder-Front Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z912	BK	0.35	GROUND	N/A
2	E12	OG/GY	0.35	PANEL LAMPS DRIVER	N/A
