Lamp-CUPHOLDER (Standard) Connector End View (D2325A)

Harness-Family: Console

Color: NATURAL

Gender: FEMALE

Part Number: 7283-5845

Part Description: 040-III CONNECTOR HOUSING SUB ASSEMBLY

Connector No: D2325A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Lamp-Cupholder Connector End View (Standard)

Courtesy of CHRYSLER

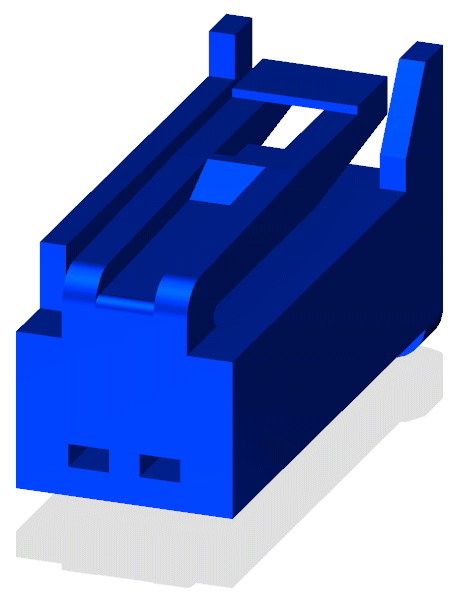

Fig 2: Lamp-Cupholder Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Lamp-Cupholder Wire Insertion View (Standard)

Courtesy of CHRYSLER

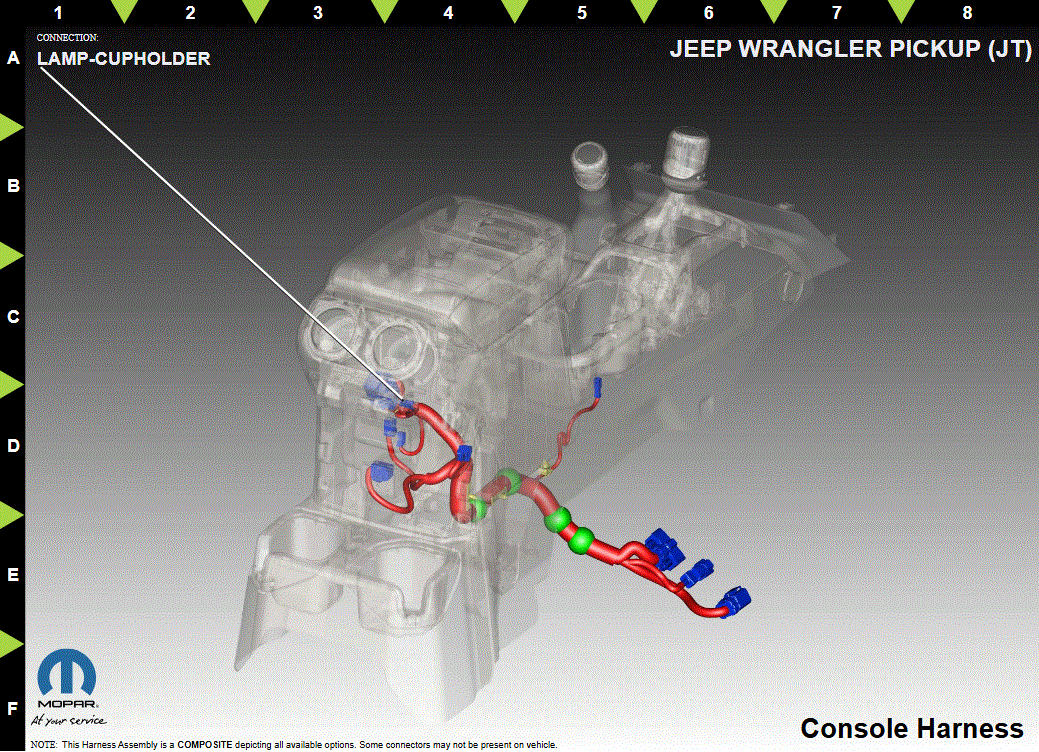

Fig 4: Lamp-Cupholder Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z912	BK	0.35	GROUND	N/A
2	E12	OG/GY	0.35	PANEL LAMPS DRIVER	N/A
