Lamp-Blind Spot Indicator-Driver (Standard) Connector End View (D6624F)

Harness-Family: Mirror_Driver

Color: NATURAL

Gender: FEMALE

Part Number: 02R-JWPF-VSLE-S

Part Description: Not Available

Connector No: D6624F

Option: Standard

Repair Kit Part Number: 68499229AA

Cavity Count: 2

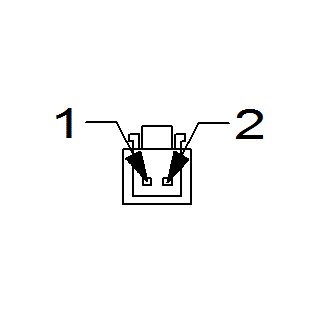

Fig 1: Lamp-Blind Spot Indicator-Driver Connector End View (Standard)
GCWD1011580Courtesy of CHRYSLER

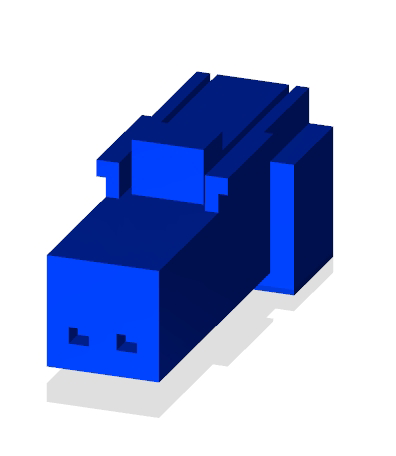

Fig 2: Lamp-Blind Spot Indicator-Driver Isometric View (Standard)
GCWD1011057Courtesy of CHRYSLER
Fig 3: Lamp-Blind Spot Indicator-Driver Wire Insertion View (Standard)
GCWD1010141Courtesy of CHRYSLER

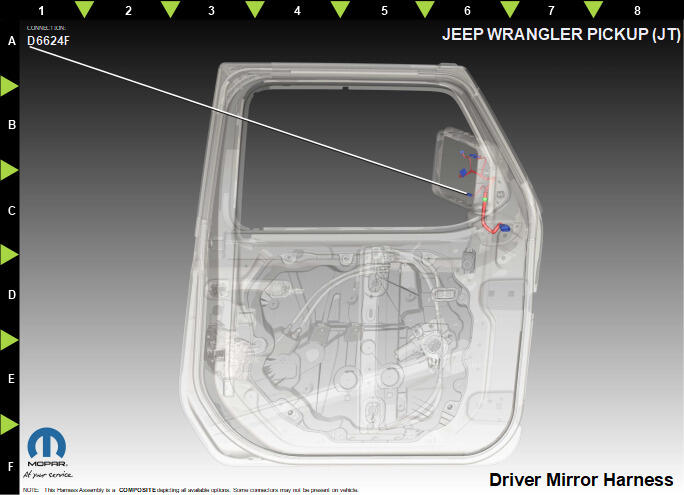

Fig 4: Lamp-Blind Spot Indicator-Driver Component Location View (Standard)
GCWD1318278Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P711 BK/BN 0.35 LEFT BLIND SPOT INDICATOR DRIVER N/A
2 Z912 BK 0.35 GROUND N/A
