Lamp-Assembly-Right Front C1 (Standard) Connector End View (D6606A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 33472-0601

Part Description: Not Available

Connector No: D6606A

Option: Standard

Repair Kit Part Number: 68225123AA

Cavity Count: 6

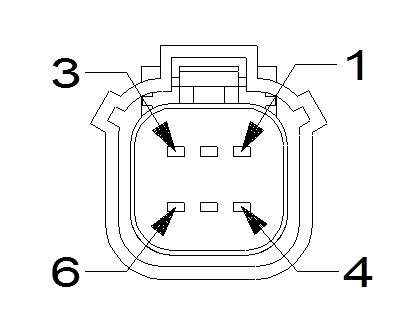

Fig 1: Lamp-Assembly-Right Front C1 Connector End View (Standard)

Courtesy of CHRYSLER

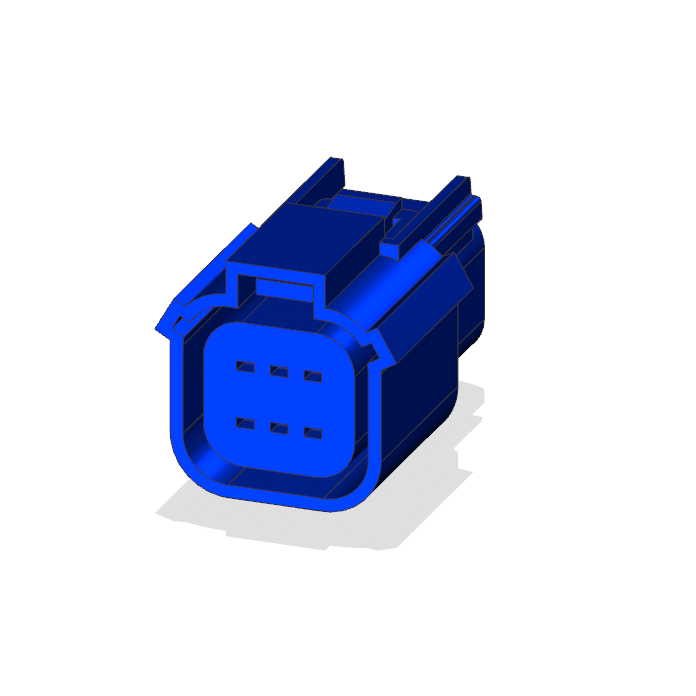

Fig 2: Lamp-Assembly-Right Front C1 Isometric View (Standard)

Courtesy of CHRYSLER

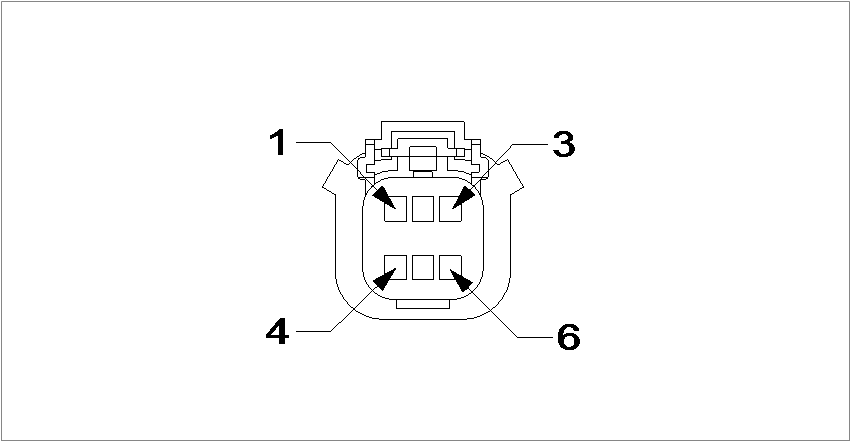

Fig 3: Lamp-Assembly-Right Front C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

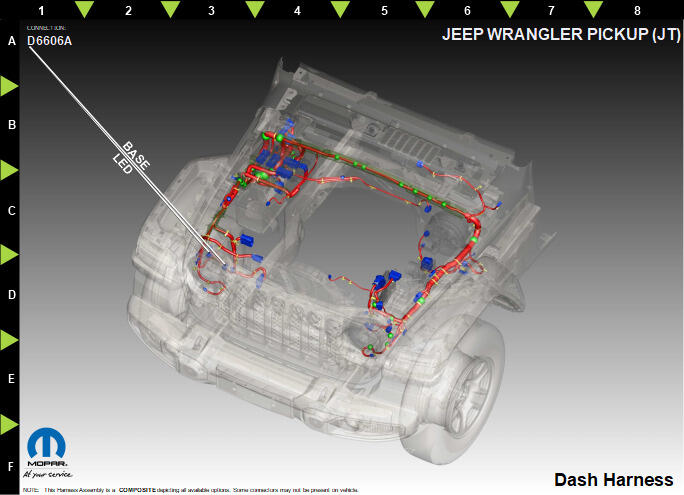

Fig 4: Lamp-Assembly-Right Front C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z904	BK	1.5	GROUND	N/A
2	L44	WH/BG	1.5	RIGHT LOW BEAM DRIVER	N/A
3	N0	NA	0	NO CONNECT	N/A
4	L34	WH/GY	1.5	RIGHT HIGH BEAM DRIVER	N/A
5	L118	BG/OG	0.50	RIGHT FRONT PARK LAMP DRIVER	EXCEPT EXPORT
5	N0	NA	0	NO CONNECT	EXPORT
6	N0	NA	0	NO CONNECT	N/A
