Injector-Fuel 4 (3.6L Gas) Connector End View (D5217A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 34062-0047

Part Description: Not Available

Connector No: D5217A

Option: 3.6L GAS

Repair Kit Part Number: 05183448AA

Cavity Count: 2

Fig 1: Injector-Fuel 4 Connector End View (3.6L GAS)

Courtesy of CHRYSLER

Fig 2: Injector-Fuel 4 Isometric View (3.6L GAS)

Courtesy of CHRYSLER

Fig 3: Injector-Fuel 4 Wire Insertion View (3.6L GAS)

Courtesy of CHRYSLER

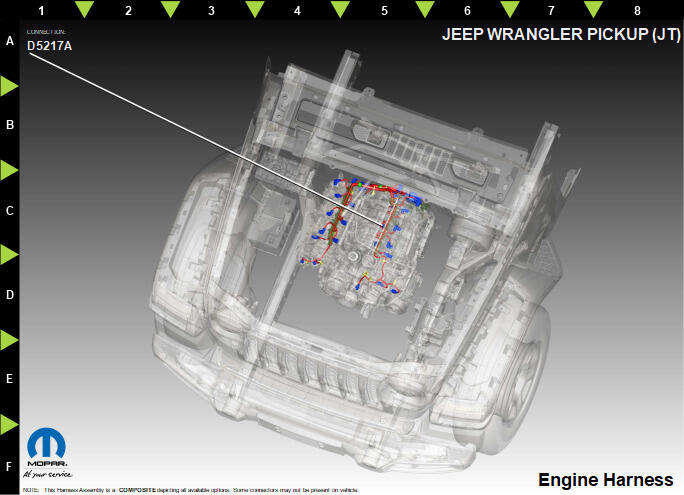

Fig 4: Injector-Fuel 4 Component Location View (3.6L GAS)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K14	BN/TN	0.75	INJECTOR 4 CONTROL	N/A
2	F343	BN/WH	1.0	FUSED ASD RELAY OUTPUT	N/A
