Injector-Def (Standard) Connector End View (D2527A)

Harness-Family: Chassis_RT

Color: BLACK

Gender: FEMALE

Part Number: 1_928_405_521

Part Description: Not Available

Connector No: D2527A

Option: Standard

Repair Kit Part Number: 68369901AA

Cavity Count: 2

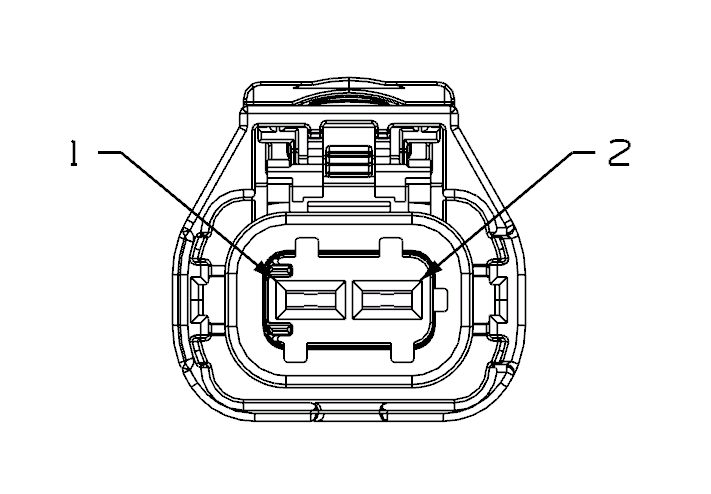

Fig 1: Injector-Def Connector End View (Standard)

Courtesy of CHRYSLER

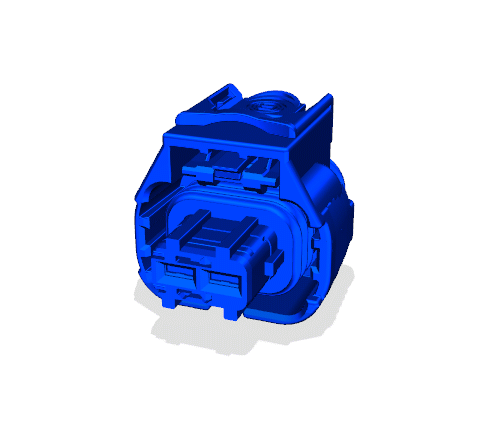

Fig 2: Injector-Def Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Injector-Def Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Injector-Def Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K428	DB	0.50	DEF INJECTOR POSITIVE	N/A
2	K426	DB/GN	0.50	DEF INJECTOR NEGATIVE	N/A
