I41A (Standard) Connector End View (I41A)

Harness-Family: Airbag_PAB

Color: YELLOW

Gender: FEMALE

Part Number: 7283-6454-70

Part Description: Not Available

Connector No: I41A

Option: Standard

Repair Kit Part Number: 68030094AA

Cavity Count: 6

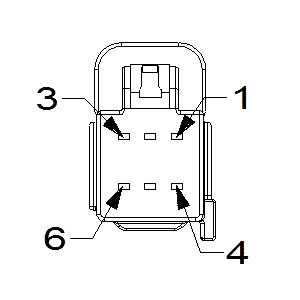

Fig 1: I41a Connector End View (Standard)

GCWD1012678

Courtesy of CHRYSLER

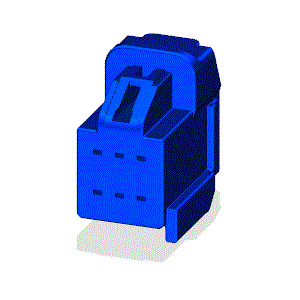

Fig 2: I41a Isometric View (Standard)

GCWD1012408

Courtesy of CHRYSLER

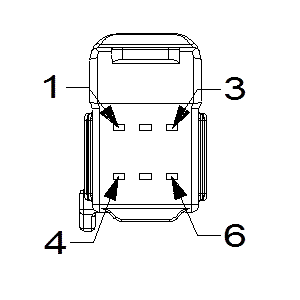

Fig 3: I41a Wire Insertion View (Standard)

GCWD1007354

Courtesy of CHRYSLER

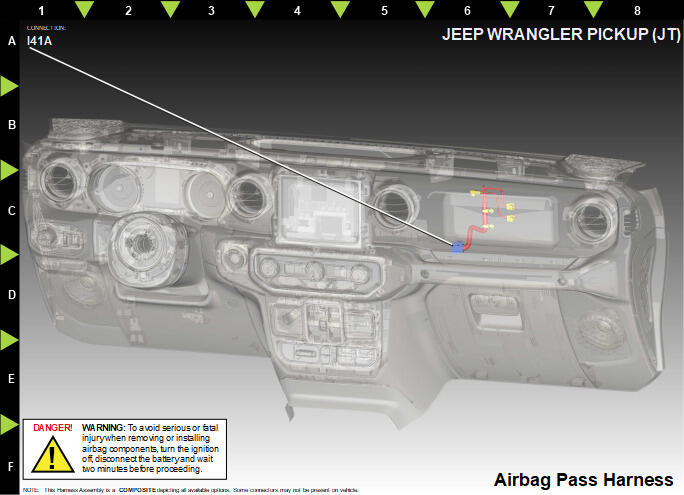

Fig 4: I41a Component Location View (Standard)

GCWD1318169

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R42	DG/BN	0.50	PASSENGER SQUIB 1 LINE 2	N/A
2	R62	BU/VT	0.50	PASSENGER SQUIB 2 LINE 2	N/A
3	R66	GY/DG	0.50	PASSENGER SQUIB 3 LINE 2	N/A
4	R44	GY/OG	0.50	PASSENGER SQUIB 1 LINE 1	N/A
5	R64	VT/WH	0.50	PASSENGER SQUIB 2 LINE 1	N/A
6	R68	BU/YE	0.50	PASSENGER SQUIB 3 LINE 1	N/A

Harness-Family: IP

Color: YELLOW

Gender: MALE

Part Number: 7282-6454-70

Part Description: Not Available

Connector No: I41A

Option: Standard

Repair Kit Part Number: 68496372AA

Cavity Count: 6

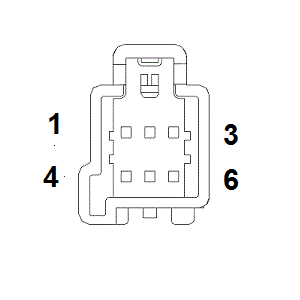

Fig 1: I41a Connector End View (Standard)

GCWD1012447

Courtesy of CHRYSLER

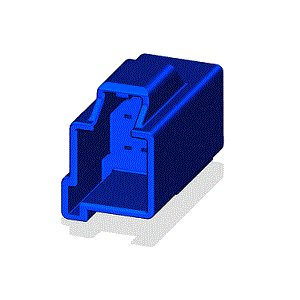

Fig 2: I41a Isometric View (Standard)

GCWD1012224

Courtesy of CHRYSLER

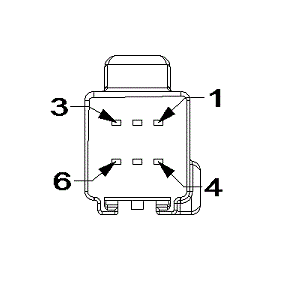

Fig 3: I41a Wire Insertion View (Standard)

GCWD1007965

Courtesy of CHRYSLER

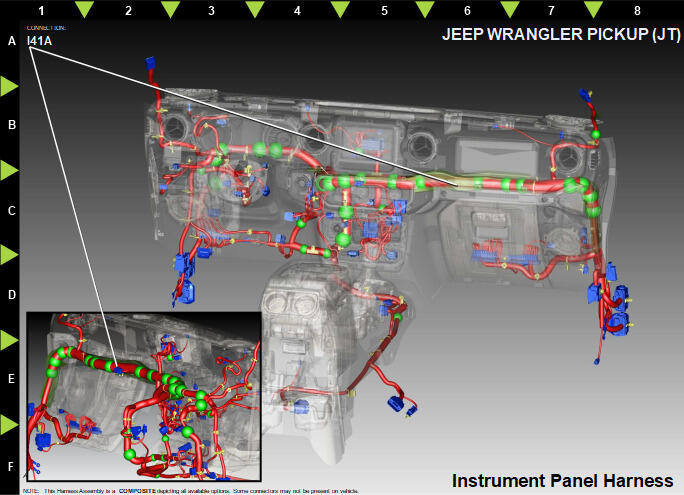

Fig 4: I41a Component Location View (Standard)

GCWD1318629

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R42	DG/BN	0.50	PASSENGER SQUIB 1 LINE 2	N/A
2	R62	BU/VT	0.50	PASSENGER SQUIB 2 LINE 2	N/A
3	R66	GY/DG	0.50	PASSENGER SQUIB 3 LINE 2	N/A
4	R44	GY/OG	0.50	PASSENGER SQUIB 1 LINE 1	N/A
5	R64	VT/WH	0.50	PASSENGER SQUIB 2 LINE 1	N/A
6	R68	BU/YE	0.50	PASSENGER SQUIB 3 LINE 1	N/A
