Heater-Def Line-Pressure (Standard) Connector End View (D2631A)

Harness-Family: Chassis_RT

Color: BLACK

Gender: FEMALE

Part Number: 13510085

Part Description: ASM CONN 2 F GT 150 BLK SLD

Connector No: D2631A

Option: Standard

Repair Kit Part Number: 68272961AA

Cavity Count: 2

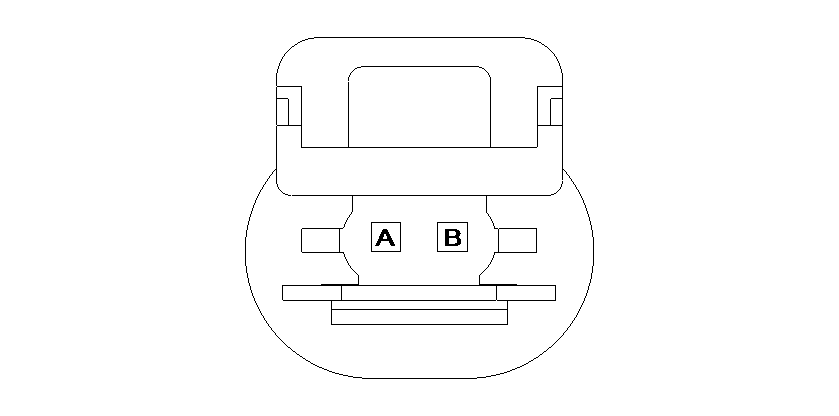

Fig 1: Heater-Def Line-Pressure Connector End View (Standard)

Courtesy of CHRYSLER

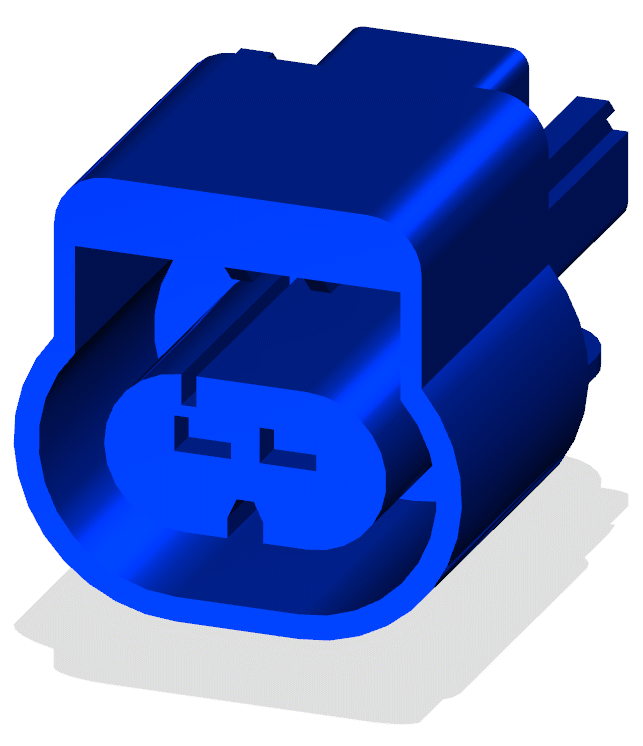

Fig 2: Heater-Def Line-Pressure Isometric View (Standard)

Courtesy of CHRYSLER

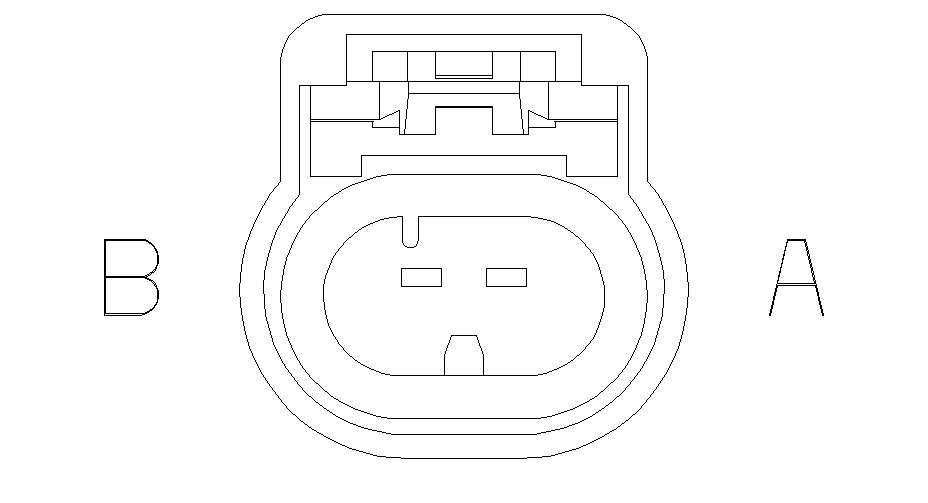

Fig 3: Heater-Def Line-Pressure Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Heater-Def Line-Pressure Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
A	K404	BN	1.0	DEF LINE HEATER SUPPLY	N/A
B	Z906	BK	1.0	GROUND	N/A
