Generator C2 (3.6L Gas) Connector End View (D3000B)

Harness-Family: Powertrain

Color: DARK GRAY

Gender: FEMALE

Part Number: 7287-3616-10

Part Description: ALTERNATOR CONNECTOR

Connector No: D3000B

Option: 3.6L GAS

Repair Kit Part Number: 05161919AB

Cavity Count: 2

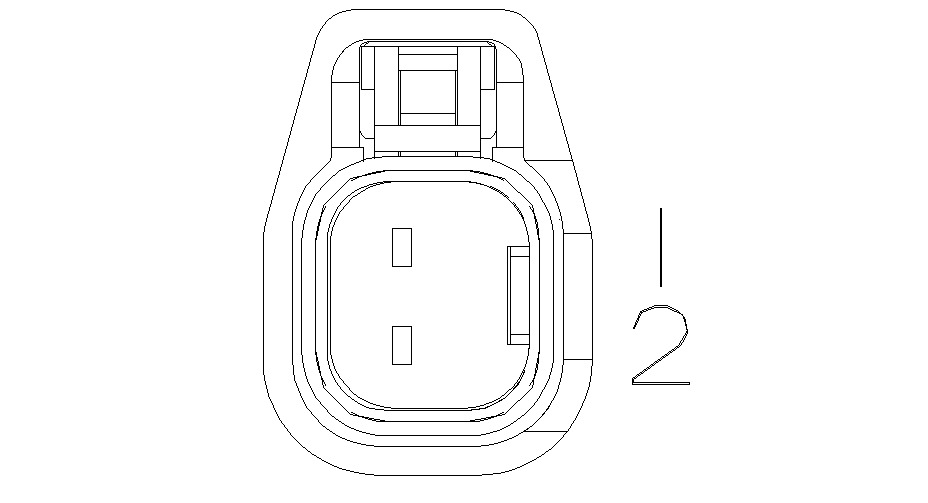

Fig 1: Generator C2 Connector End View (3.6L GAS)
GCWD1012267Courtesy of CHRYSLER

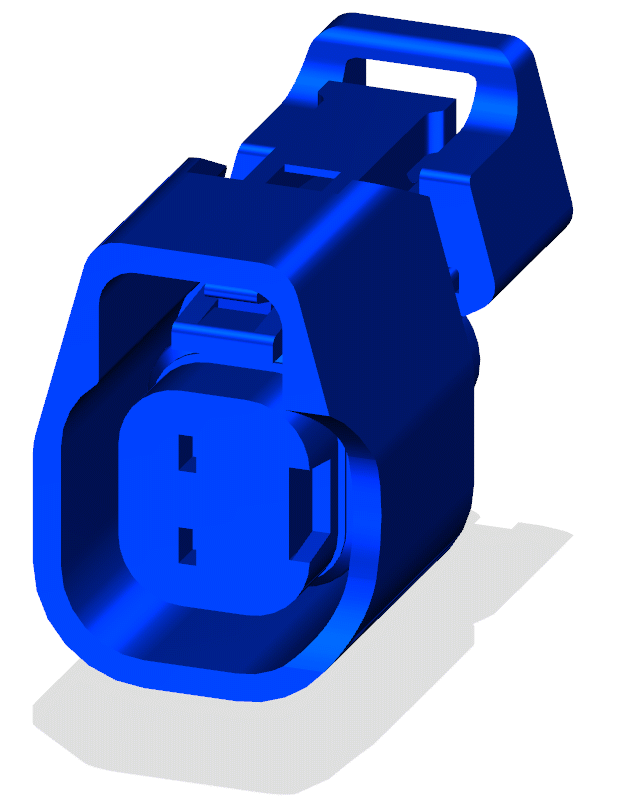

Fig 2: Generator C2 Isometric View (3.6L GAS)
GCWD1013019Courtesy of CHRYSLER

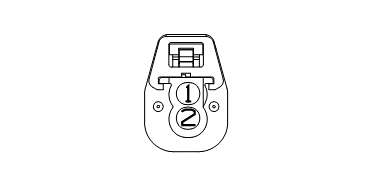

Fig 3: Generator C2 Wire Insertion View (3.6L GAS)
GCWD1010355Courtesy of CHRYSLER

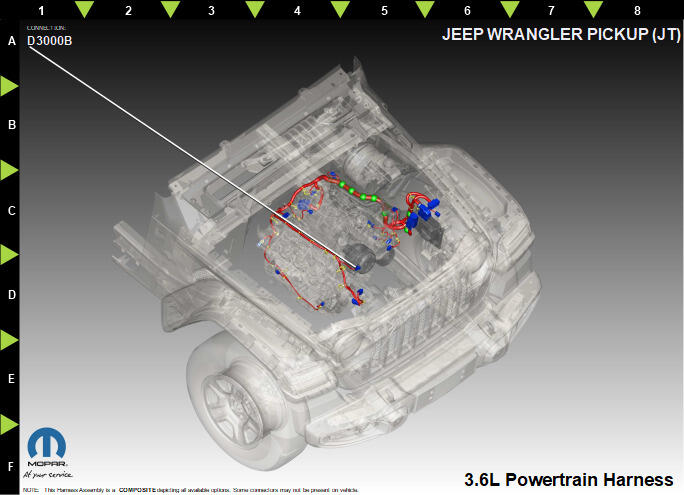

Fig 4: Generator C2 Component Location View (3.6L GAS)
GCWD1318827Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K20 BN/GY 0.75 GEN FIELD CONTROL N/A
2 A804 RD/VT 0.75 GEN SENSE N/A
