Generator C2 (3.0L Diesel) Connector End View (D3000B)

Harness-Family: Engine_Diesel1

Color: BLACK

Gender: FEMALE

Part Number: 1/15089/97

Part Description: Not Available

Connector No: D3000B

Option: 3.0L DIESEL

Repair Kit Part Number: Not Available

Cavity Count: null

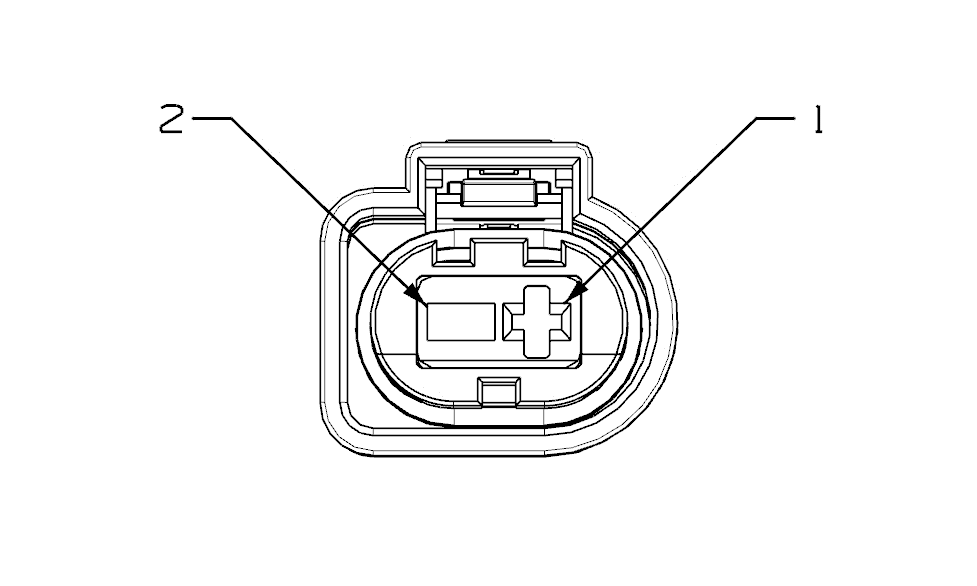

Fig 1: Generator C2 Connector End View (3.0L DIESEL)

Courtesy of CHRYSLER

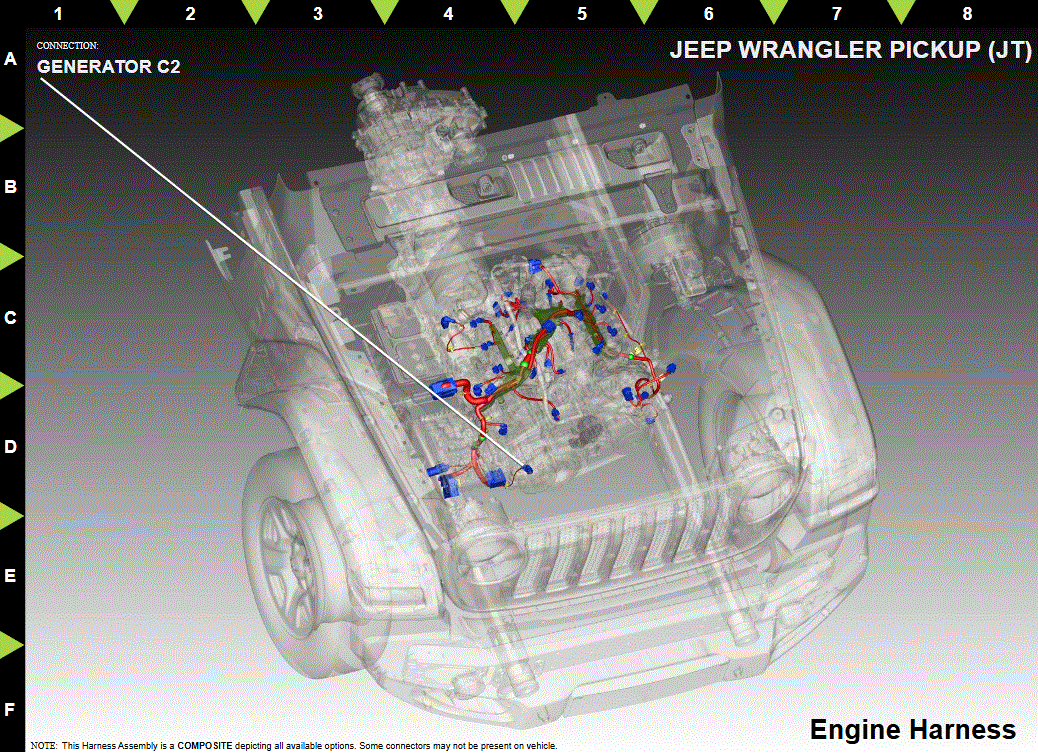

Fig 2: Generator C2 Component Location View (3.0L DIESEL)

Courtesy of CHRYSLER
