Generator C1 (Standard) Connector End View (D3000A)

Harness-Family: Alternator

Color: NA

Gender: FEMALE

Part Number: R8439

Part Description: Not Available

Connector No: D3000A

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: Generator C1 Connector End View (Standard)
GCWD1006759Courtesy of CHRYSLER
Fig 2: Generator C1 Isometric View (Standard)
GCWD1007509Courtesy of CHRYSLER

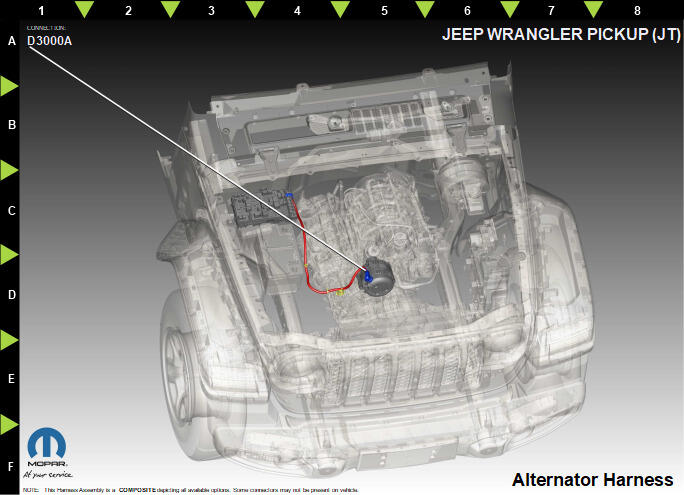

Fig 3: Generator C1 Component Location View (Standard)
GCWD1318766Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A801 RD/GY 35.0 B(+) N/A
