G920A (Standard) Connector End View (G920A)

Harness-Family: Seat_Cushion_Driver

Color: NA

Gender: FEMALE

Part Number: 15509708

Part Description: Not Available

Connector No: G920A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: G920a Connector End View (Standard)
GCWD1255257Courtesy of CHRYSLER

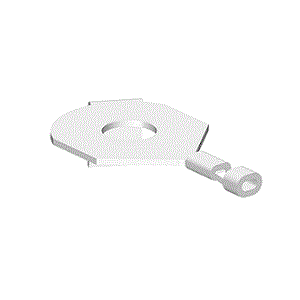

Fig 2: G920a Isometric View (Standard)
GCWD1314776Courtesy of CHRYSLER

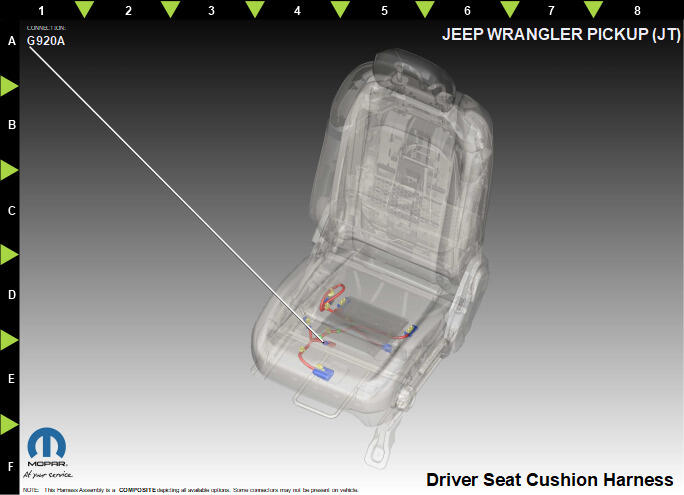

Fig 3: G920a Component Location View (Standard)
GCWD1318645Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z920 BK 0.75 GROUND N/A
