G917A (Standard) Connector End View (G917A)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: MGT001BFLPSW

Part Description: Not Available

Connector No: G917A

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: G917a Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: G917a Isometric View (Standard)

Courtesy of CHRYSLER

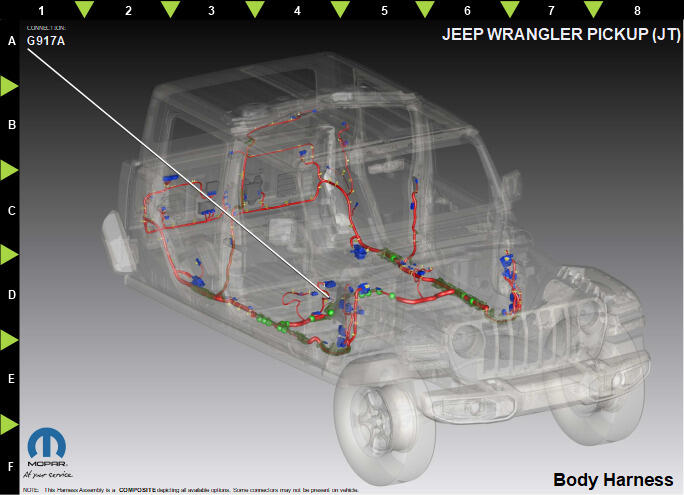

Fig 3: G917a Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z917	BK/BU	1.0	GROUND	N/A
1	Z920	BK/BU	0.35	GROUND	N/A
1	Z921	BK/BU	0.35	GROUND	N/A
1	Z917	BK	2.0	GROUND	N/A
