G911A (Except Export) Connector End View (G911A)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: MGT001BFLPSW

Part Description: Not Available

Connector No: G911A

Option: EXCEPT EXPORT

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: G911a Connector End View (EXCEPT EXPORT)

Courtesy of CHRYSLER

Fig 2: G911a Isometric View (EXCEPT EXPORT)

Courtesy of CHRYSLER

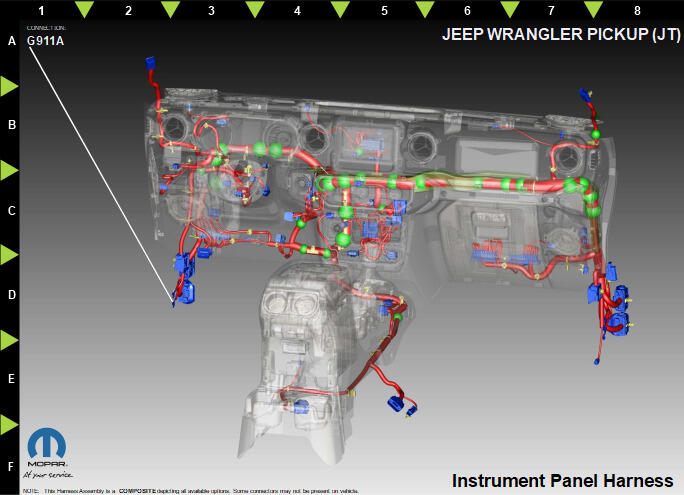

Fig 3: G911a Component Location View (EXCEPT EXPORT)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z911	BK/VT	0.50	GROUND	N/A
1	Z911	BK/YE	0.75	GROUND	N/A
1	Z911	BK	0.35	GROUND	N/A
