G910A (Standard) Connector End View (G910A)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: MGT001BLP

Part Description: Not Available

Connector No: G910A

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: G910a Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: G910a Isometric View (Standard)

Courtesy of CHRYSLER

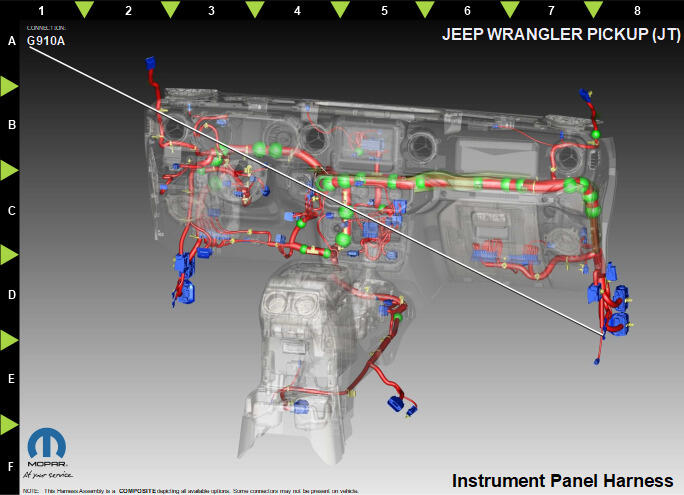

Fig 3: G910a Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z910	BK/WH	2.0	GROUND	N/A
1	Z910	BK	5.0	GROUND	N/A
1	Z910	BK/YE	0.50	GROUND	N/A
1	Z910	BK/BU	0.50	GROUND	N/A
1	Z910	BK/GY	1.5	GROUND	N/A
