G906B (Standard) Connector End View (G906B)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: MGT002BFLPH

Part Description: Not Available

Connector No: G906B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: G906b Connector End View (Standard)
GCWD1225864Courtesy of CHRYSLER
Fig 2: G906b Isometric View (Standard)
GCWD1225676Courtesy of CHRYSLER

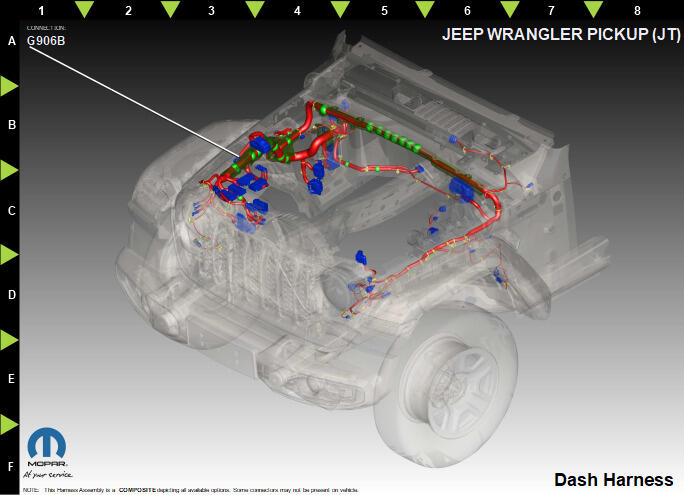

Fig 3: G906b Component Location View (Standard)
GCWD1318581Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z906 BK 4.0 GROUND N/A
