G906A (Standard) Connector End View (G906A)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: MGT001BFLPH

Part Description: Not Available

Connector No: G906A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

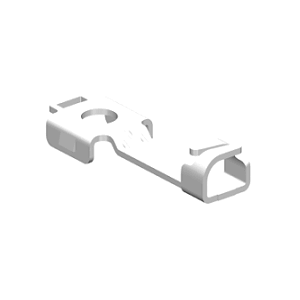

Fig 1: G906a Connector End View (Standard)

Courtesy of CHRYSLER

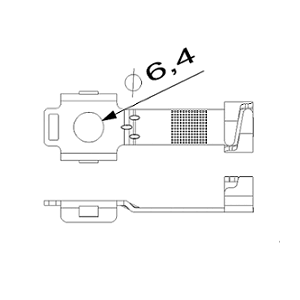

Fig 2: G906a Isometric View (Standard)

Courtesy of CHRYSLER

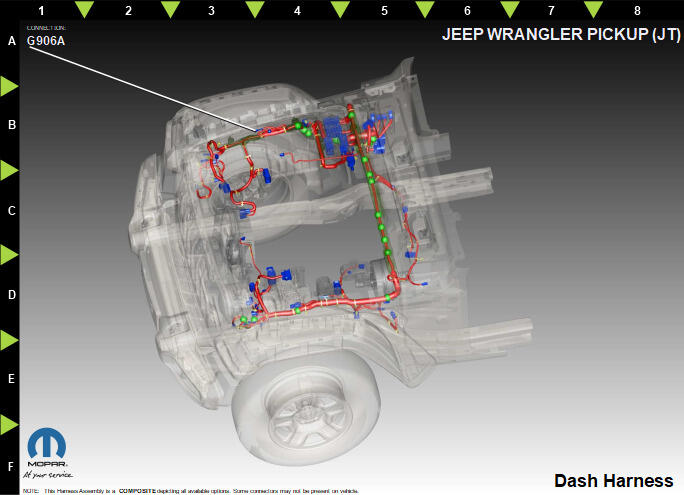

Fig 3: G906a Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z906	BK/YE	1.5	GROUND	N/A
1	Z906	BK/GN	1.5	GROUND	N/A
1	Z906	BK/GY	2.5	GROUND	N/A
1	Z906	BK/VT	1.5	GROUND	N/A
1	Z906	BK/BU	2.5	GROUND	N/A
