G905A (Standard) Connector End View (G905A)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: MGT001BFLPSW

Part Description: Not Available

Connector No: G905A

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: G905a Connector End View (Standard)
GCWD1012209Courtesy of CHRYSLER
Fig 2: G905a Isometric View (Standard)
GCWD1013750Courtesy of CHRYSLER

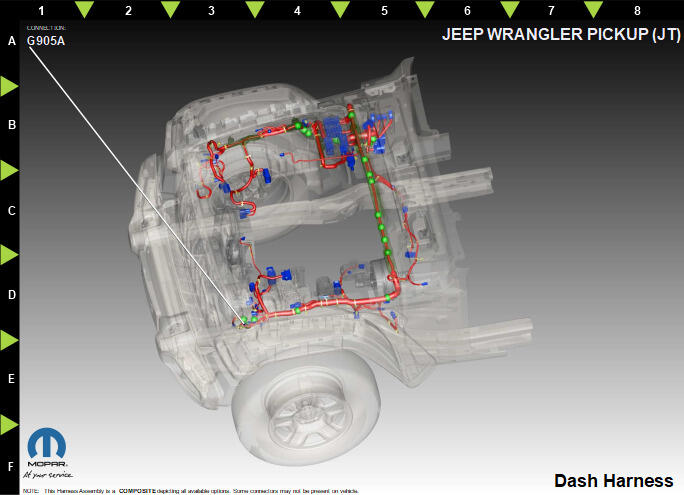

Fig 3: G905a Component Location View (Standard)
GCWD1319004Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z905 BK 1.5 GROUND N/A
1 Z905 BK/BU 0.35 GROUND N/A
