G904B (Standard) Connector End View (G904B)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: MGT002BLP

Part Description: Not Available

Connector No: G904B

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

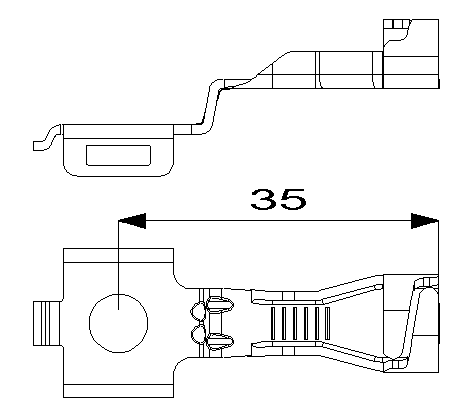

Fig 1: G904b Connector End View (Standard)
GCWD1079477Courtesy of CHRYSLER

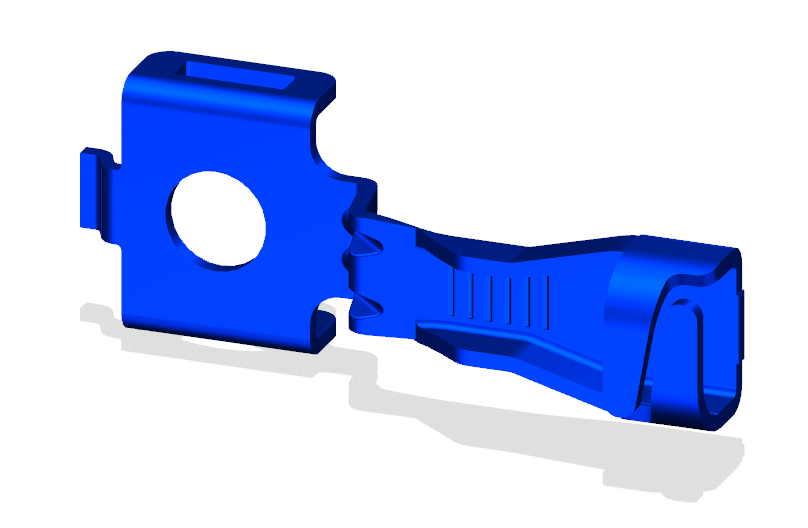

Fig 2: G904b Isometric View (Standard)
GCWD1084937Courtesy of CHRYSLER

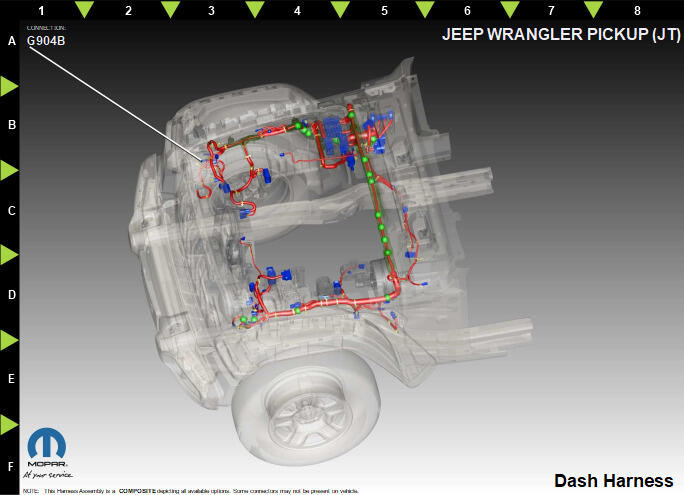

Fig 3: G904b Component Location View (Standard)
GCWD1318996Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z904 BK 1.5 GROUND N/A
1 Z904 BK/BU 0.35 GROUND N/A
