G904A (Standard) Connector End View (G904A)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: MGT001BLP

Part Description: Not Available

Connector No: G904A

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

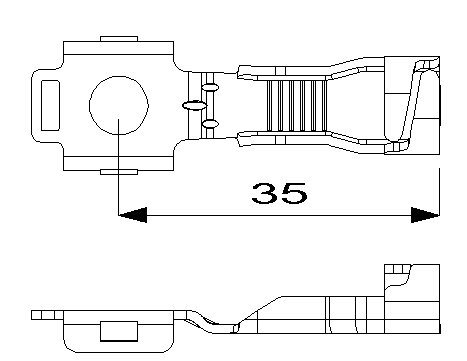

Fig 1: G904a Connector End View (Standard)
GCWD1079538Courtesy of CHRYSLER

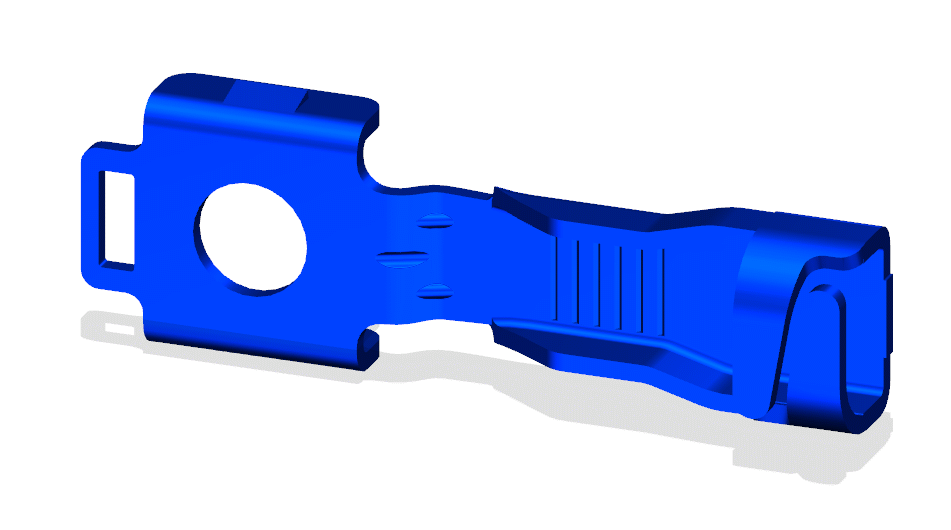

Fig 2: G904a Isometric View (Standard)
GCWD1084657Courtesy of CHRYSLER

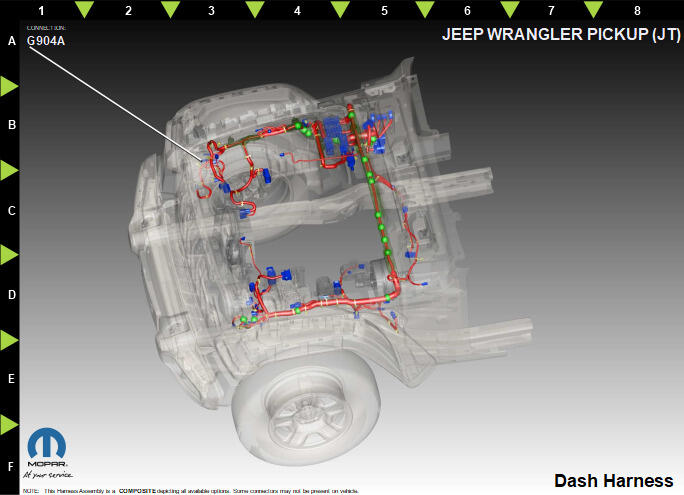

Fig 3: G904a Component Location View (Standard)
GCWD1319000Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z904 BK 12 GROUND N/A
