G903D (Standard) Connector End View (G903D)

Harness-Family: Chassis_RT

Color: NA

Gender: FEMALE

Part Number: R8657

Part Description: Not Available

Connector No: G903D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

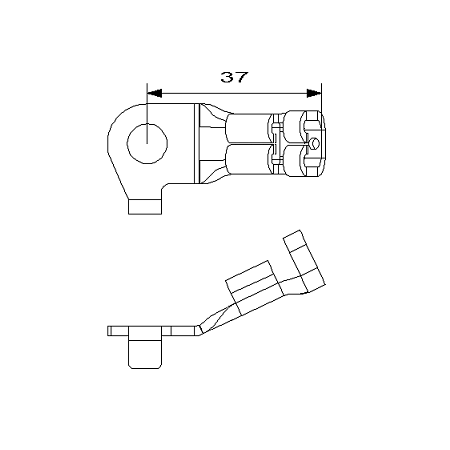

Fig 1: G903d Connector End View (Standard)
GCWD1283646Courtesy of CHRYSLER

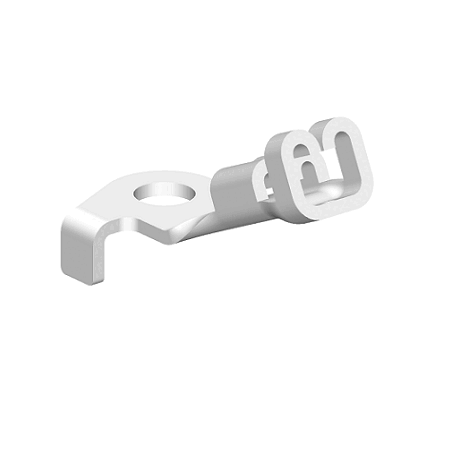

Fig 2: G903d Isometric View (Standard)
GCWD1318331Courtesy of CHRYSLER
Fig 3: G903d Component Location View (Standard)
GCWD1318372Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z903 BK 35.0 GROUND N/A
